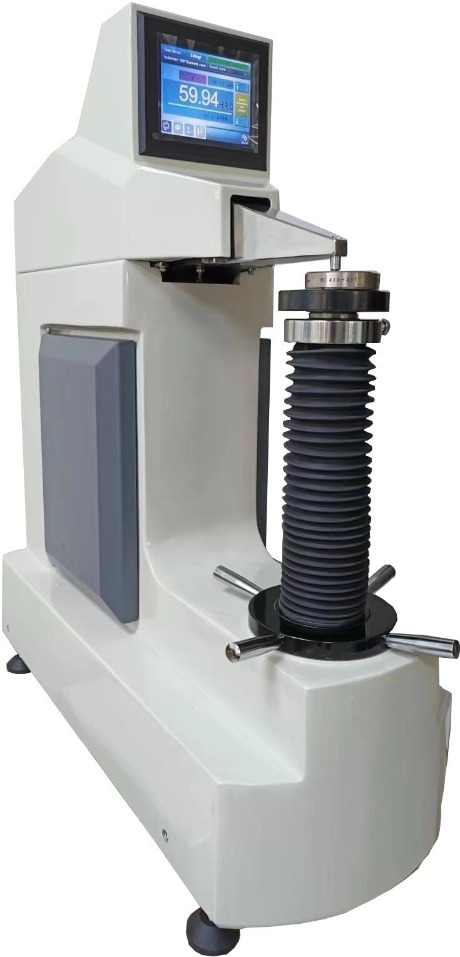

TTM-IH3C Digital Rockwell Hardness Tester Inner Hole Type
內孔式數顯型洛氏硬度試驗機
- Accurate control of all load cells, automatic load-hold-release, greatly improved accuracy level.
- 全荷重元精確控制，自動負荷-保持-解除，精度等級大幅提高

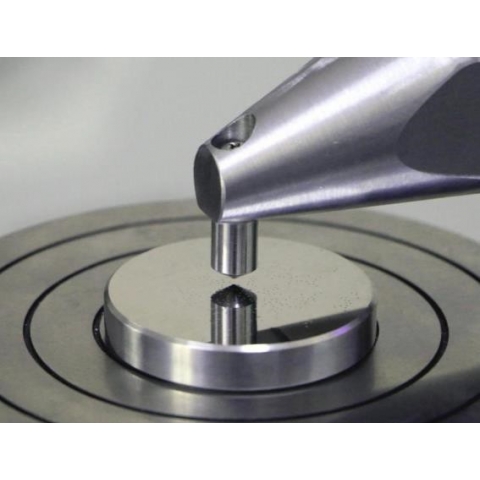

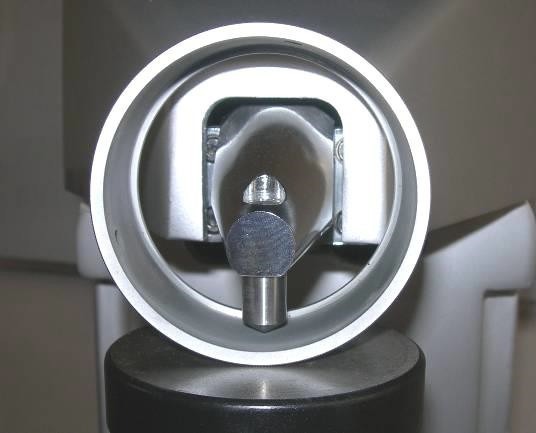

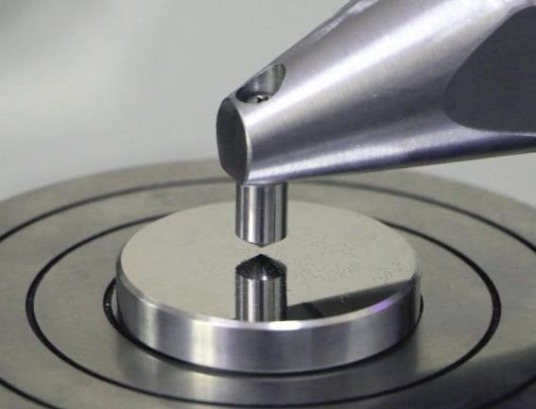

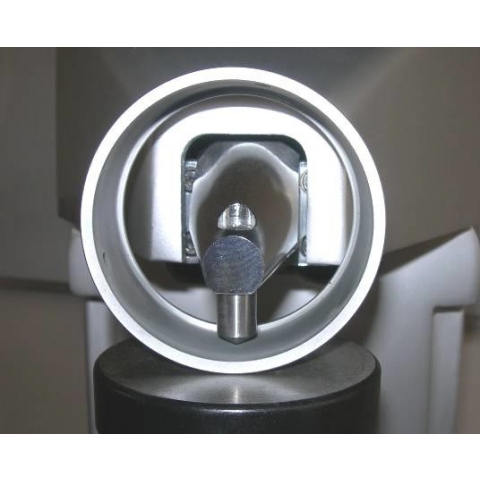

- The "extended measuring arm" has a larger measurement space; it can measure the hardness of the inner hole, and the penetration depth is 130mm.
- “延伸測臂”測量空間更大；可測內孔硬度，探入深度 130mm.

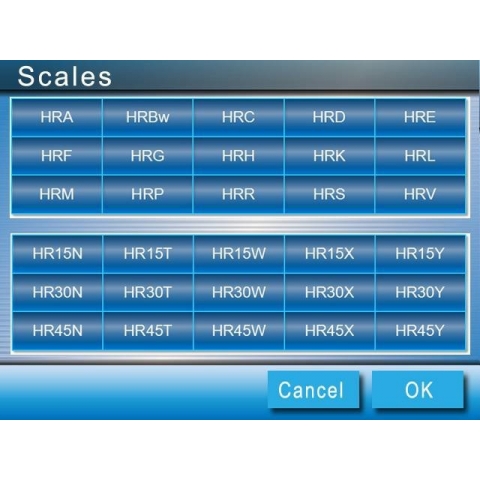

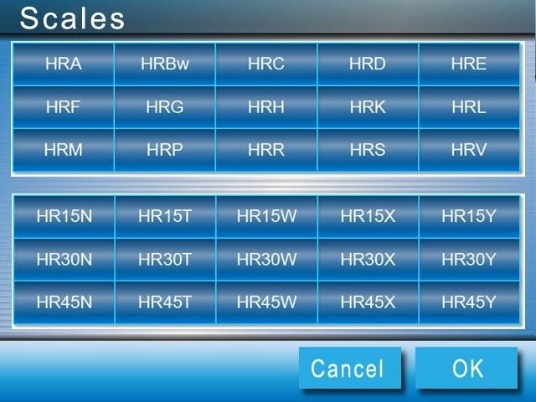

- Full Rockwell function: including Rockwell hardness, superficial Rockwell hardness; a total of 30 Rockwell hardness scales.
- 全洛氏功能：包括洛氏硬度、表面洛氏硬度；共 30 種洛氏硬度制式

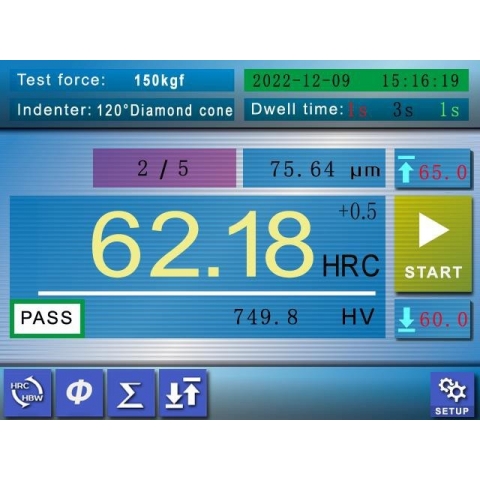

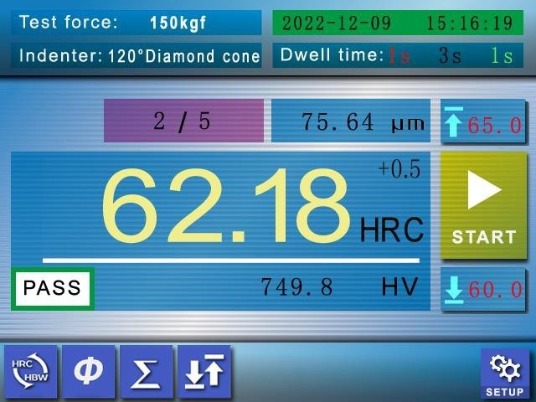

- Touch screen, high definition, high brightness; measurement display resolution 0.01HR Rockwell unit.
- 觸控式螢幕、高清晰、高亮度；測量顯示解析度 0.01HR 洛氏單位
- The sounding accuracy is less than 0.5um; the sounding value is dynamically and instantly displayed with a resolution of 0.01um.
- 測深精度小於 0.5um；動態即時顯示測深值，解析度 0.01um
- The fuselage is integrally cast to ensure long-term stability, good strength and no deformation; the widened casting base ensures durability and stability.
- 機身整體鑄造保證長期穩定性，強度好無變形；加寬鑄造基座，保證耐用與穩定性
- 5000 sets of measurement data are automatically stored and can be consulted at any time
- 5000 組測量資料自動存儲，隨時查閱
- Curvature Correction: Automatically corrects measurement results for curved parts
- 曲率修正：自動修正曲面零件測量結果
TECHNICAL SPECIFICATIONS / 技術規格
| Technical specifications / 技術規格 | |
| Test resolution / 測試分辨力 | 0.01HR |
| Initial test force / 初試驗力 | 29.4N/3kgf 、98.07N/10kgf |
| Total test force / 總試驗力 | 47.1N /15kgf、588.4N/60kgf 294.3N /30kgf、980.7N/100kgf 441.3N/45kgf、 1471N/150kgf |
| Hold time/ 保持時間 | 2-999 seconds, test can be set 2-999秒，可設定測試 |
| Space / 空間 | Vertical 300mm, Depth 220mm 垂直 300mm，深度 220mm |
| Power supply / 電源 | 220V/110V、50Hz、4A |

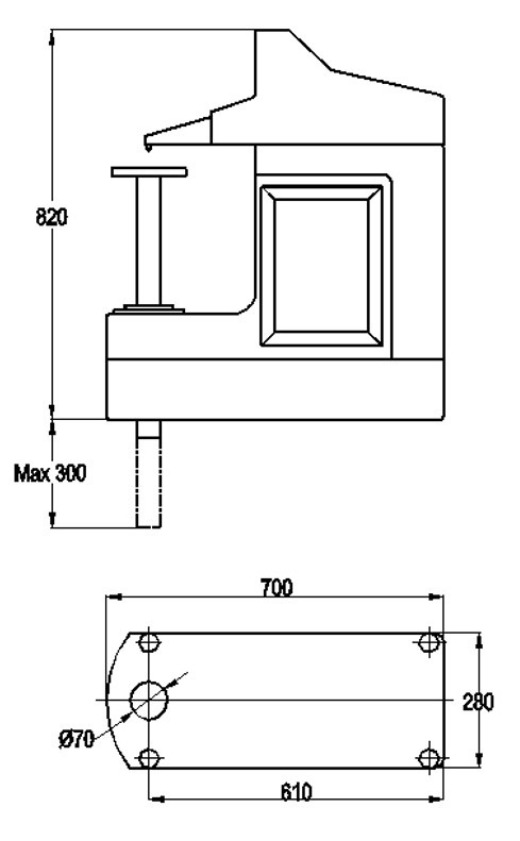

| Size / 尺寸 | 690mm * 280mm * 860mm |
| Weight / 重量 | 85kg |
