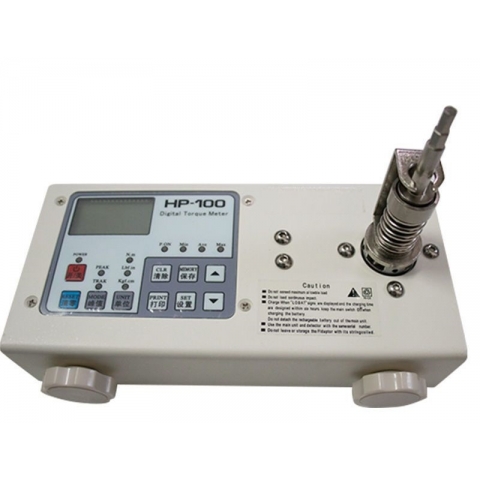

Torque Meter/ 扭力測試儀
FEATURES / 特點
Measuring testers designed and manufactured for a wide range of torques. It is mainly used to measure and detect the torque of various electric screwdrivers, pneumatic screwdrivers, torque screwdrivers, and torque wrenches; to calibrate the torque of electric screwdrivers, pneumatic screwdrivers, torque drivers, torque wrenches, and bottle caps to meet needs; it can also measure the torque of other tools , such as various fixtures, etc. The torque tester is easy to operate, has high precision, complete functions and is easy to carry. It is suitable for product production and maintenance in various industries.
針對各種扭力設計製造的一種計量測試儀。主要用於計量檢測各種電動螺絲起子、氣動螺絲起子、扭力起子和扭力扳手等扭力的大小；校正電動螺絲起子、氣動螺絲起子、扭力起子和扭力扳手、瓶蓋扭力的扭力，使之符合需要；還可以測量其它工具的扭力，例如：各種夾具等。該扭力測試儀操作簡單，精度高、功能全、攜帶方便，適用於各行業的產品生產和維修。

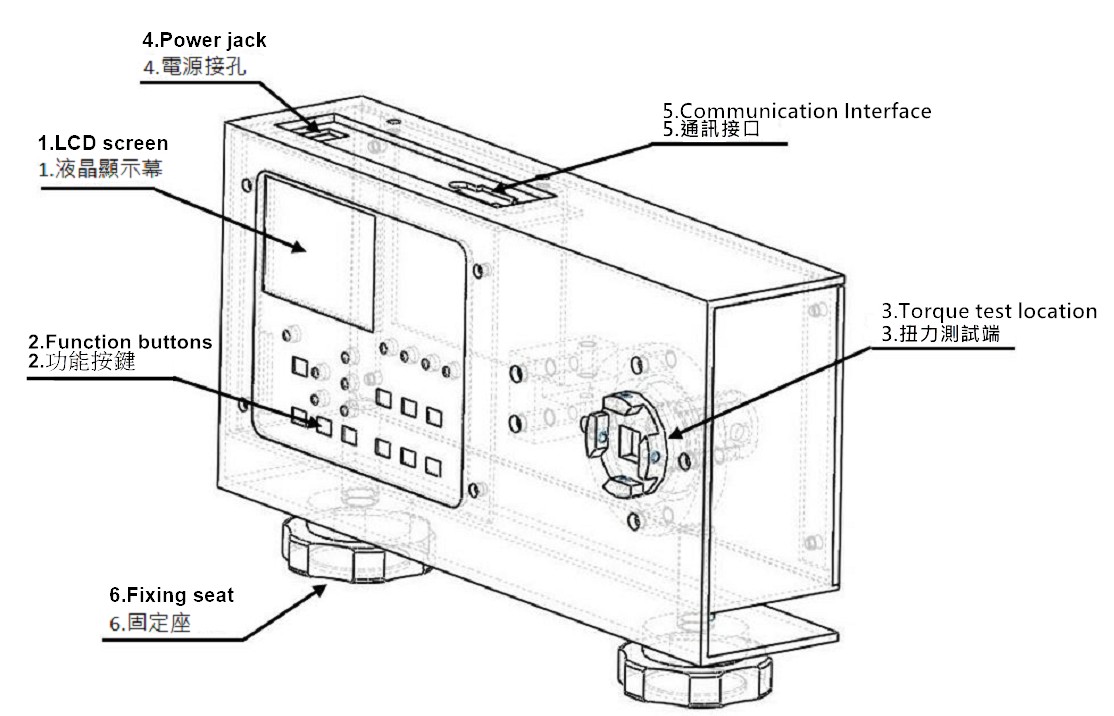

Appearance of torque tester / 扭力測試儀外觀
.jpg)

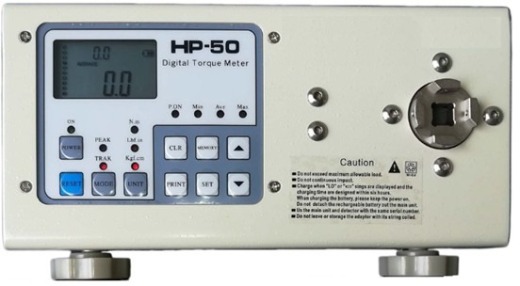

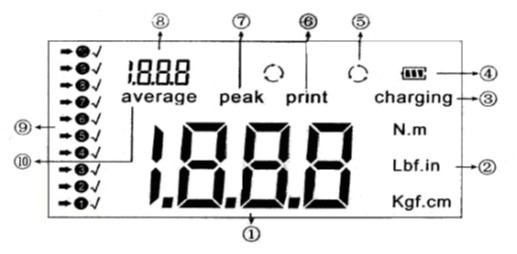

LCD screen display

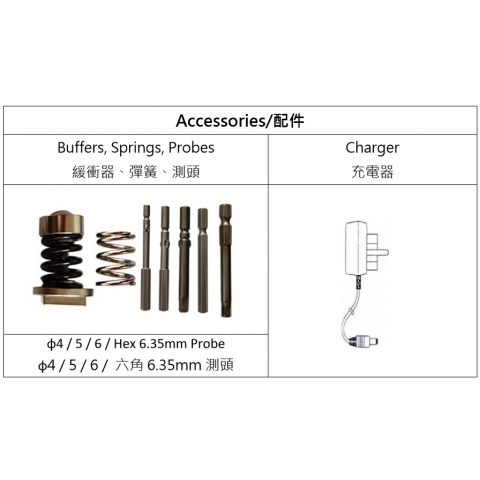

| Accessories / 配件 | |

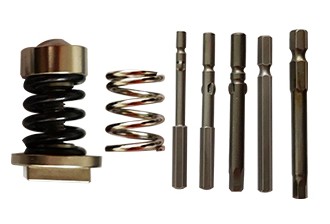

| Buffers, Springs, Probes 緩衝器、彈簧、測頭 |
Charger 充電器 |
.jpg) |
 .jpg) |
| Probe/測頭 φ4 / 5 / 6 / 六角6.35mm  |
|
Performance Specifications / 性能規格

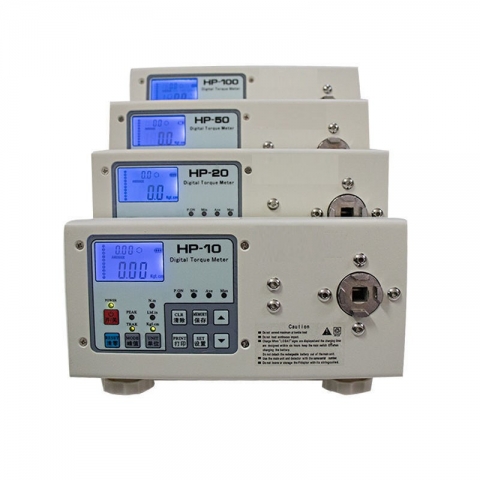

| Model / 型號 | 10 HP | 20 HP | 50 HP | 100 HP | 250 HP | |
| Measuring range 測量範圍 |
Lbf.in | 0.05~9.00 | 0.5~18.0 | 0.5~45.0 | 0.5~90.0 | 5.0~180 |
| Kgf.cm | 0.05~10.000 | 0.5~20.0 | 0.5~50.0 | 0.5~100.0 | 5.0~250 | |
| N.m | 0.0005~1.00 | 0.05~2.00 | 0.05~5.00 | 0.05~10.00 | 0.50~25.0 | |
| Measurement methods 測量方式 |
Track , keep 跟蹤、保持 |
|||||
| Accuracy class 精度等級 |
± 0.5% FS | |||||
| Built-in battery 內置電池 |
3.7V lithium battery, charging time is more than 6 hours 3.7 V鋰電池 開機充電時間大於6 小時 |
|||||
| Sampling frequency 採樣速率 |
Ultra-high-speed sampling frequency 1000HZ 超高速採樣頻率1000HZ |
|||||
| Working time 工作時間 |
Fully charged continuous working time is more than 50 hours 充滿電連續工作時間大於50 小時 |
|||||
| Battery Life 電池壽命 |
Environmental protection lithium battery charge times more than 1000 times 環保鋰電池充電次數大於 1000 次 |
|||||
| Dimension/ Weight 尺寸/重量 |
W×H×D 230mm×50mm×120mm ，4Kg | |||||
| Regulated AC 穩壓交流器 |
Input：AC110~ 220V 50Hz Output：DC 9 V， 0.6 A 輸入：AC110~ 220V 50Hz 輸出：DC 9 V， 0.6 A |
|||||
| Working temperature/humidity 操作溫/濕度 |
Temperature：-10℃〜40℃ Humidity： 35％RH〜65％RH 溫度：-10℃〜40℃ 濕度： 35％RH〜65％RH |
|||||
| Arbitrary conversion of three measurement units Kgf.cm, Lbf.in, N.m 三個測量單位Kgf.cm、Lbf.in、N.m之間任意轉換。 With instant data sampling and peak hold sampling function. 具備即時資料採樣和峰值保持採樣功能。 Torque can be tested in both positive and negative directions, and the torque direction can be displayed. 可測試正反雙方向扭力，扭力方向顯示。 The minimum value, comparison value and maximum value alarm can be set freely 可自由設定最低值、比較值、最大值報警。 Can store and print 10 test data (printer optional) 可存儲並列印10個測試資料（印表機選配）。 Automatically calculates the average of stored data. 自動計算儲存資料的平均值。 Real-time monitoring of built-in battery power, accurate display. 可即時監測內置電池電量，並準確顯示。 No operation automatic shutdown power saving design, adjustable from 1 to 60 minutes. 無操作自動關機省電設計，1~60分鐘可調。 Environmentally friendly and durable high-capacity lithium battery, intelligent charging control 環保耐用大容量鋰電池，智慧充電控制。 Light touch buttons are durable and reliable, easy to operate. 輕觸按鍵耐用可靠、操作簡單方便。 It can be connected to the computer for online testing through software, and the force value and curve can be displayed in real time (optional) 可通過軟體連接電腦線上測試，即時顯示受力數值及曲線（選配）。 It can be customized to have PLC switch output or support ModBus485 data output (customization) 可定制具備PLC 開關量輸出或支援ModBus485資料輸出（定制）。 |
||||||
