cantilever beam load cell
懸臂梁式稱重傳感器
Product Reviews產品介紹
Characteristic：
Compact structure, high comprehensive precision, good long-term stability, high quality alloy steel surface nickel plating.
Application fields：
The Peld of tension and pressure testing instruments such as heavy duty testing machine,hopper scale, hook scale, packaging scale, belt scale, plug-in force tester, automation equipment and testing Peld.
特性：
結構緊湊、綜合精度高、長期穩定性好、優質合金鋼表面鍍鎳。
應用領域：
大力值試驗機、料斗秤、吊鉤秤、包裝秤、皮帶秤、插拔力測試儀等拉壓力測試儀器以及自動化設備領域和測試領域

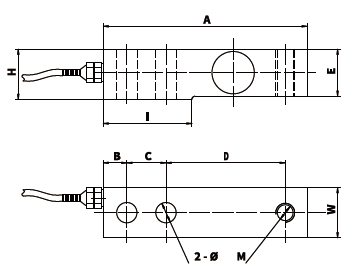

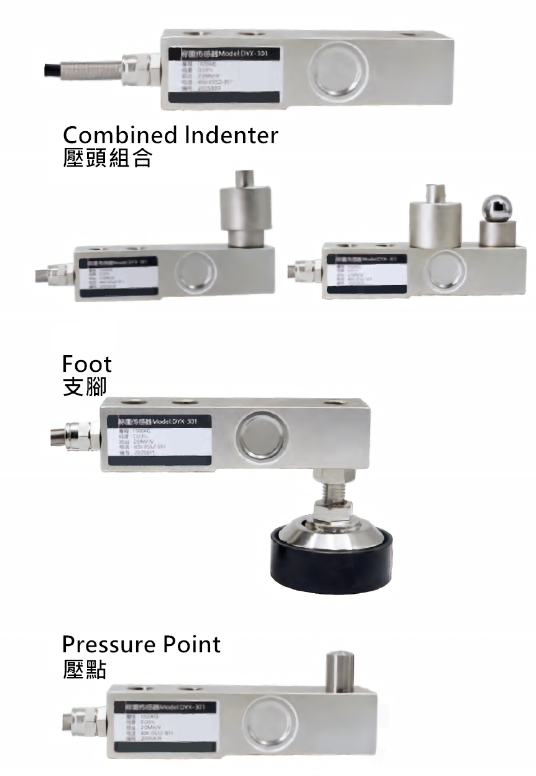

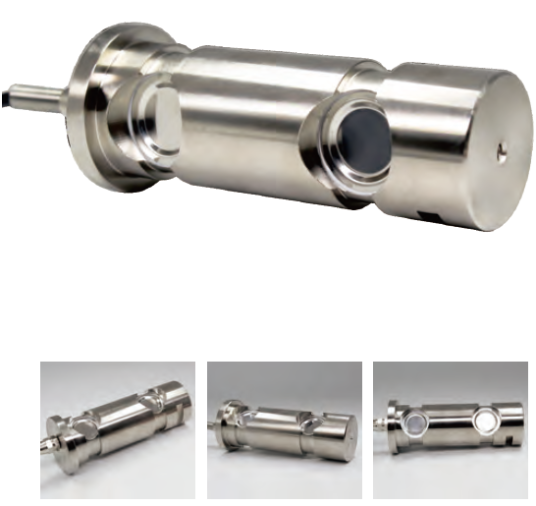

TTM-X301
External Dimension外形尺寸
| Capacity | ØA | B | C | D | E | W | H | M | 2-Ø | I |
| 50kg-2T | 130 | 15 | 25 | 76 | 30 | 32 | 32 | M12x1.75 | Ø13 | 56 |
| 2.5-5T | 171 | 19 | 38 | 96 | 38 | 38 | 43 | M18x1.5 | Ø20 | 80 |
| 6-10T | 225.6 | 25.4 | 50.8 | 122.9 | 50.8 | 50.8 | 56 | M24x2 | Ø26.4 | 105 |
Parameters Table參數表
| Capacity量程 | 0-10T | Material材質 | Alloy steel合金鋼 Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 2.0±0.05%mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.03%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.03%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.03%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø5x3m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

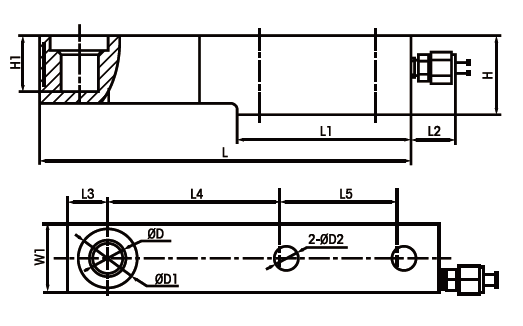

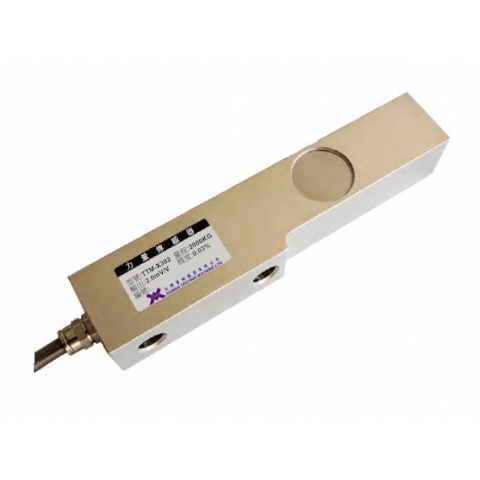

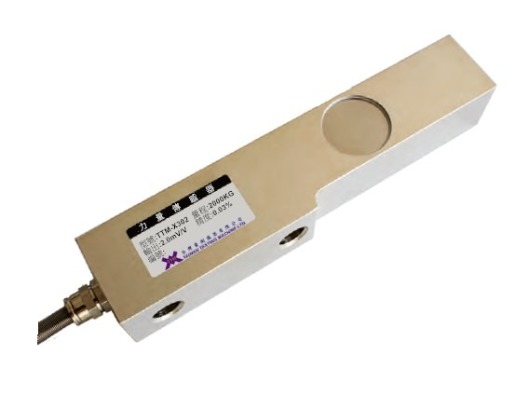

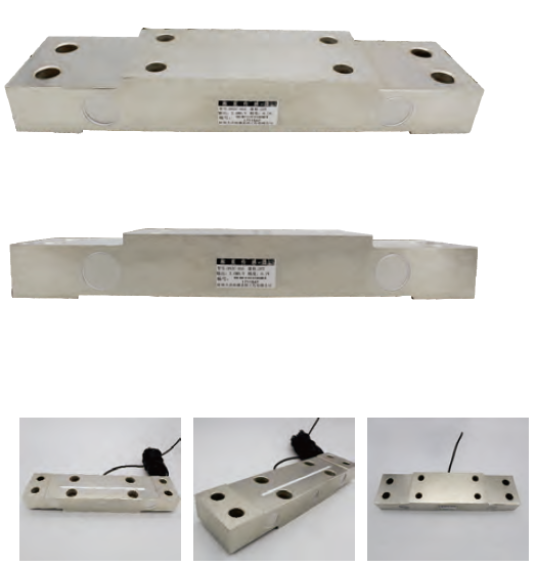

TTM-X302

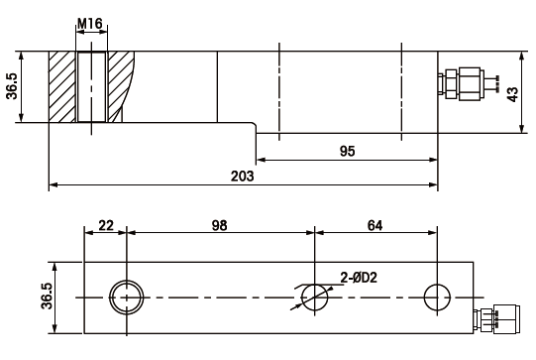

External Dimension外形尺寸
| Capacity | L | L1 | L2 | L3 | L4 | L5 | W1 | H | H1 | ØD | ØD1 | ØD2 |
| 0.5-2T | 203 | 95 | 26 | 22 | 98 | 64 | 36.5 | 43 | 30.4 | 16 | 32 | 13 |
| 3T | 203 | 95 | 26 | 22 | 98 | 64 | 36.5 | 43 | 30.4 | 16 | 32 | 15 |
| 5T | 235 | 110 | 26 | 22 | 124 | 66 | 47.5 | 52 | 30 | 22 | 38 | 20 |
Parameters Table參數表
| Capacity量程 | 0-5T | Material材質 | Alloy steel合金鋼 Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 2.0±0.02%mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.03%F.S. | Voltage電壓 | 5-10v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.02%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.02%F.S. | Maximum overload極限過載 | 300% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø5x5m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

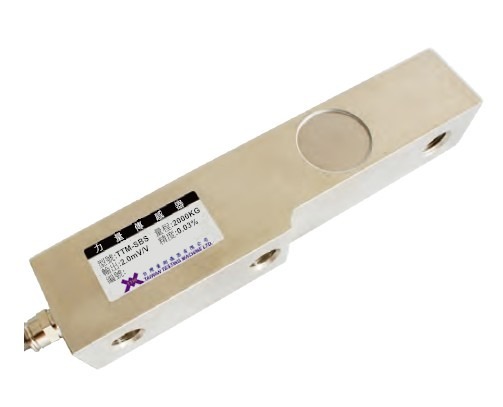

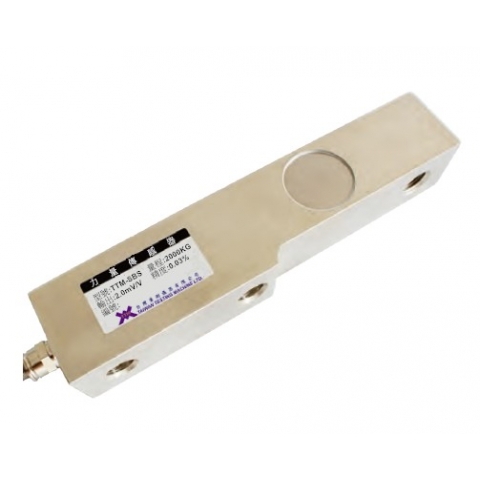

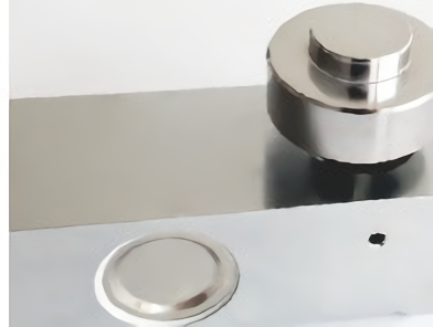

TTM-SBS
External Dimension外形尺寸
| Capacity | D2 |
| 0.3-2T | 13 |
| 3T | 15 |
| Capacity量程 | 0-3T | Material材質 | Alloy steel合金鋼 Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 2.0±0.02mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.03%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.02%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.02%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø5X3m |
| Temp Effect on Zero零點溫度漂移 | 0.03%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

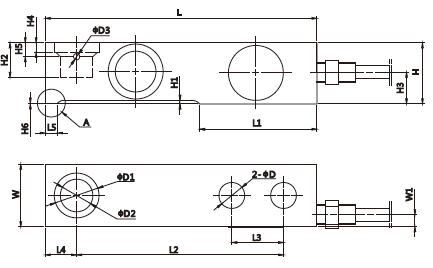

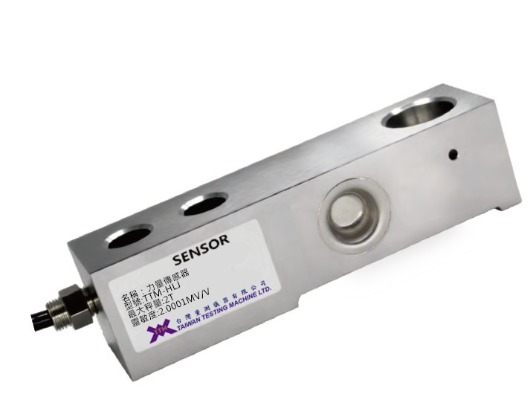

TTM-HLJ
External Dimension外形尺寸
| Capacity(T) | D | D1 | D2 | D3 | H | H1 | H2 | H3 | H4 | H5 | H6 | L | L1 | L2 | L3 | L4 | L5 | W | W1 |
| 0.25/0.5/1 | 12.7 | 22 | 15.9 | 3.1 | 30 | 1.9 | 17 | 15.9 | 4.7 | 7.7 | 0.38 | 133.4 | 57.6 | 101.6 | 25.4 | 15.4 | 6.4 | 30.7 | 5.2 |
| 2 | 12.7 | 22 | 15.9 | 3.1 | 36.6 | 2.8 | 23 | 19.6 | 9.5 | 11.7 | 0.82 | 136.7 | 57.9 | 101.6 | 25.4 | 18.4 | 6.4 | 36.8 | 6 |
| 3 | 15 | 22 | 15.9 | - | 36.6 | 1.2 | 23 | 19.6 | 9.5 | 11.7 | - | 139.7 | 57.9 | 104.6 | 25.4 | 18.4 | - | 39 | 6 |
| 5 | 19 | 34.9 | 22.2 | 3.1 | 43 | 2 | 29.4 | 22.5 | 11 | 11.7 | - | 171.5 | 73.8 | 133.3 | 38.1 | 21.5 | - | 42.9 | 6 |

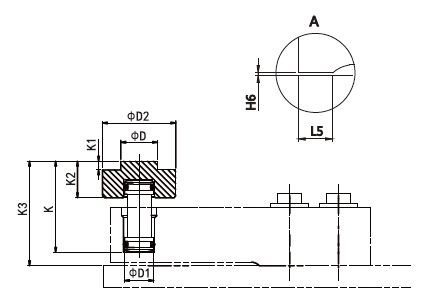

| Capacity(T) | K | K1 | K2 | K3 | D | D1 | D2 |
| 0.25-3 | 47.8 | 4.2 | 19 | 61 | 19 | 15.2 | 38 |
| 5 | 114.4 | 6 | 20.5 | 128 | 34.7 | 21.5 | 44.5 |
Application應用領域

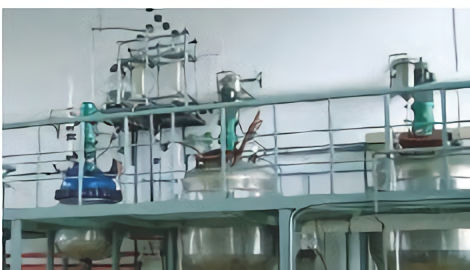

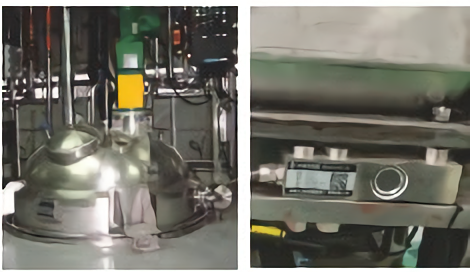

1.Reactor / 反應爐
2.Belt weighing / 輸送帶稱重裝置
Batching bin/配料倉
| Capacity量程 | 0-5T | Material材質 | Alloy steel合金鋼 Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 2.0±0.05mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.03%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.02%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.03%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø5x3m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

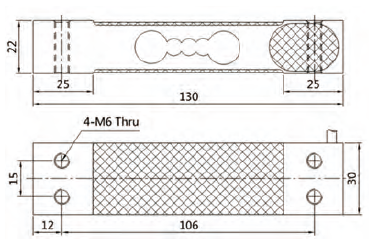

TTM-X305
External Dimension外形尺寸

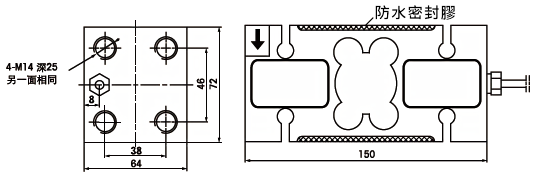

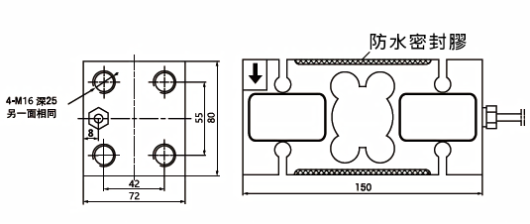

| Capacity (kg) |
| 150 250 500 1000 |
| Capacity (kg) |
| 2000 |
Parameters Table參數表
| Capacity量程 | 0-2000KG | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 2.0±0.02mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.03%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-60℃ |
| Repeatability重複性 | 0.03%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.03%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø5X3m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

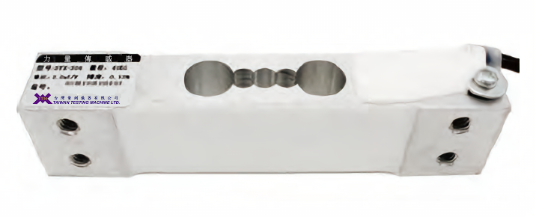

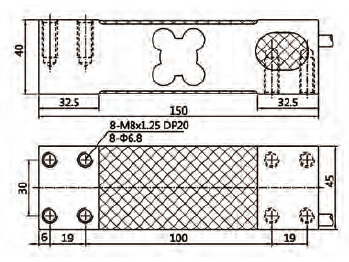

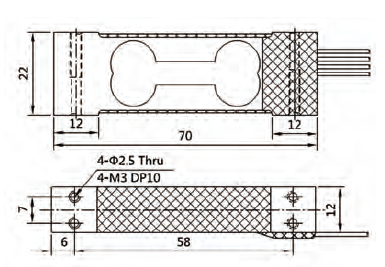

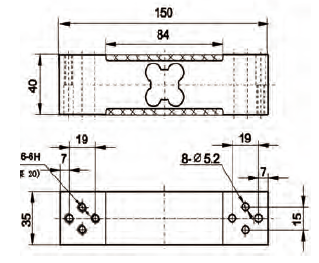

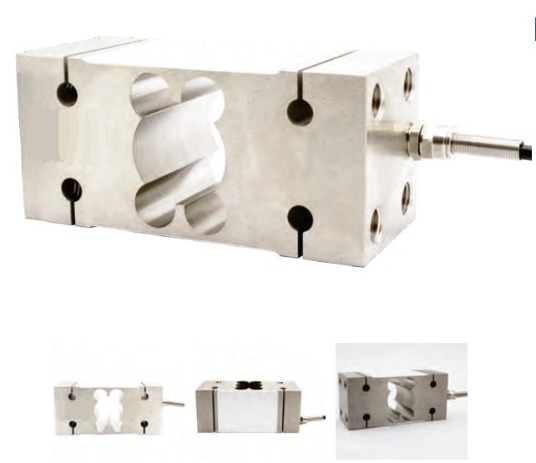

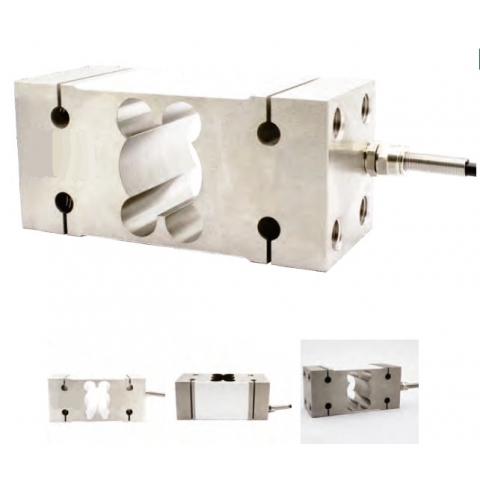

TTM-X306
External Dimension外形尺寸

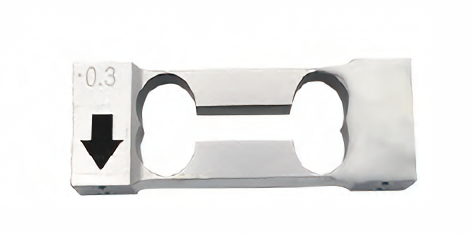

| Capacity (kg) |
| 60 100 200 350 |
| Capacity (kg) |
| 3 6 10 20 40 |
| Capacity (kg) |
| 60 100 200 350 500 |
| Capacity (kg) |
| 0.3 0.6 1 2 |
Parameters Table參數表
| Capacity量程 | 0-500kg | Material材質 | Aluminum alloy鋁合金 |
| Rated Output輸出靈敏度 | 2.0±0.05mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.02%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.02%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.03%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø5X3m |
| Temp Effect on Zero零點溫度漂移 | 0.03%F.S./10℃ | Cable ultimate pulluql電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

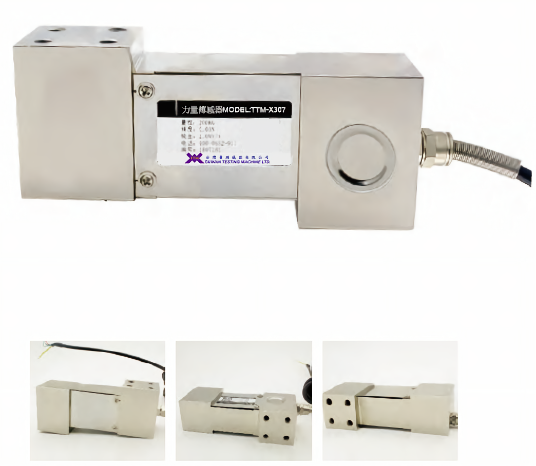

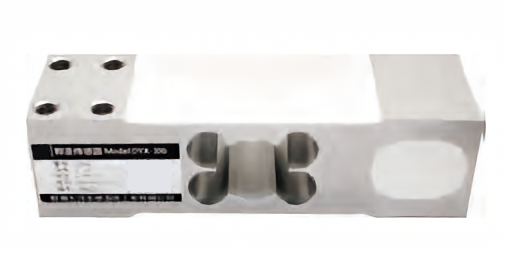

TTM-X307
External Dimension外形尺寸

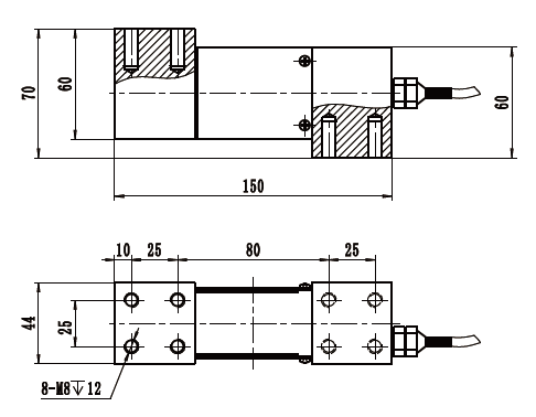

| Capacity (kg) |
| 50 100 200 500 1000 |
| Capacity量程 | 50-1000kg | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 2.0±0.05mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.03%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-60℃ |
| Repeatability重複性 | 0.03%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.03%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø5x3m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pulluql電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

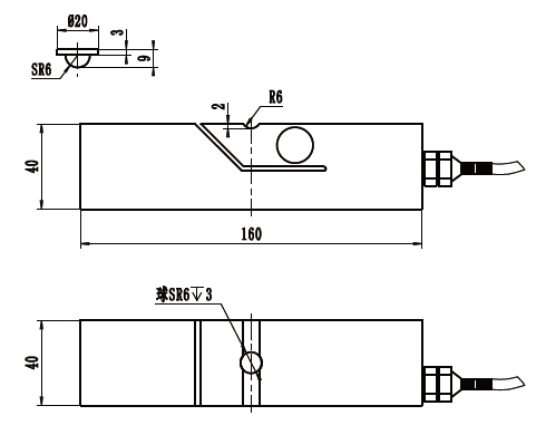

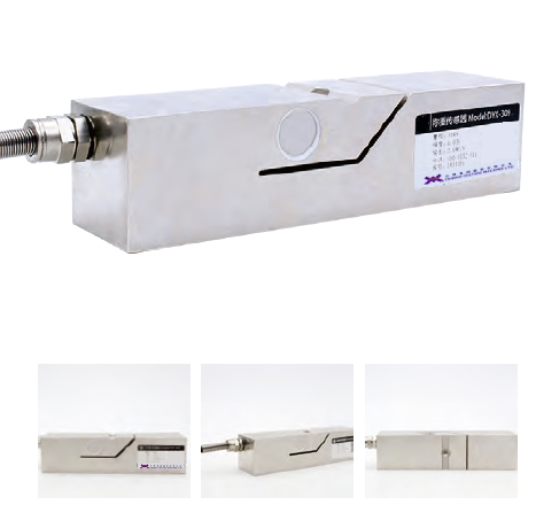

TTM-X309
External Dimension外形尺寸
| Capacity (KN) |
| 6 10 |
Capacity (kg)
| Capacity量程 | 0-10KN | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 2.0±0.05mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.05%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.05%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.05%F.S. | Safe Overload安全過載 | 120% |
| Creep(30min)蠕變(30分鐘) | 0.05%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø5x3m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pulluql電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

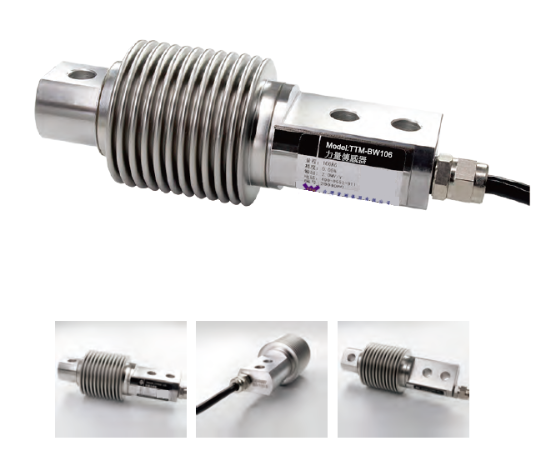

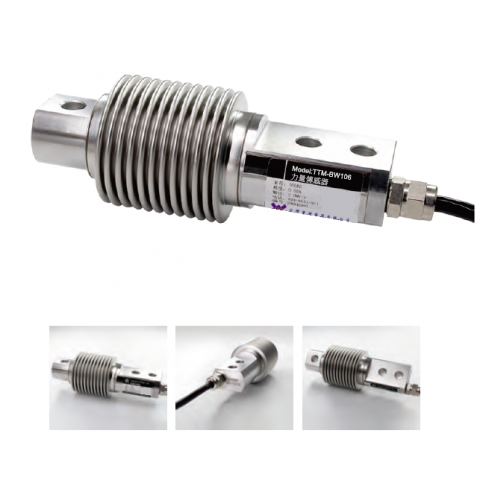

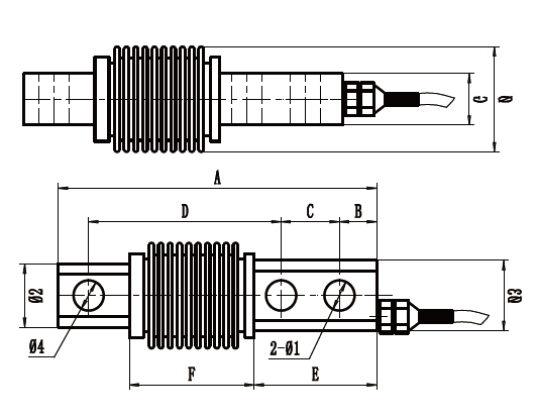

TTM-BW106
External Dimension外形尺寸
| Capacity / Dimension | A | B | C | D | E | F | G | H | Ø | Ø1 | Ø2 | Ø3 | Ø4 |
| 10-300KG | 123 | 13 | 18 | 82 | 43 | 54 | 20 | 20 | 45 | 8.2 | 27 | 32 | 8.2 |
| 500-1000KG | 123 | 13 | 18 | 82 | 43 | 54 | 20 | 20 | 45 | 10.5 | 27 | 32 | 10.5 |
| Capacity量程 | 0-1000KG | Material材質 | Alloy steel合金鋼 Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 2.0/3.0±0.05mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.03%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-60℃ |
| Repeatability重複性 | 0.03%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.03%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø5x3m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pulluql電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

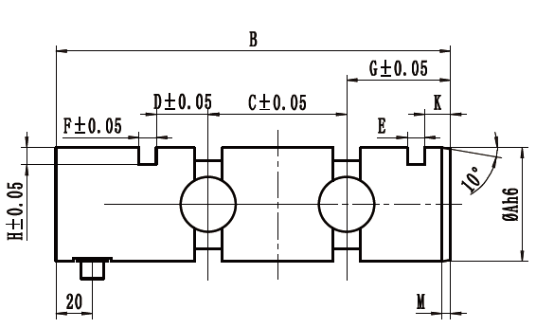

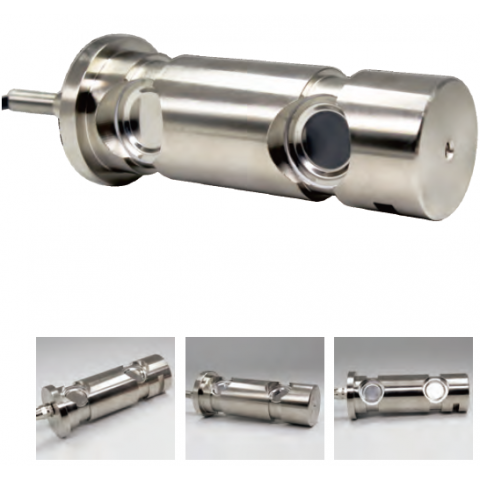

TTM-ZX001
External Dimension外形尺寸
| Capacity(T) | A | B | C | D | E | F | G | H | K | M |
| 2,3,5 | 50 | 180 | 66 | 27 | 4.5 | 6.5 | 32 | 7 | 9 | 3 |
| 7,10 | 60 | 190 | 96 | 14 | 10 | 9 | 33 | 9 | 9 | 5 |
| 10,15 | 65 | 210 | 116 | 14 | 10 | 9 | 32 | 9 | 8 | 5 |
| 20,30 | 80 | 225 | 109 | 20 | 12 | 11 | 40 | 10 | 8 | 6 |
| 40,50,100 | 120 | 275 | 153 | 25 | 14 | 13 | 51 | 15 | 12 | 6 |
| Capacity量程 | 0-100T | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 1.0±0.05mV/V | Impedance阻抗 | 700±5Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.5%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.5%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.5%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.5%F.S. | Maximum overload極限過載 | 300% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø5x3m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pulluql電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

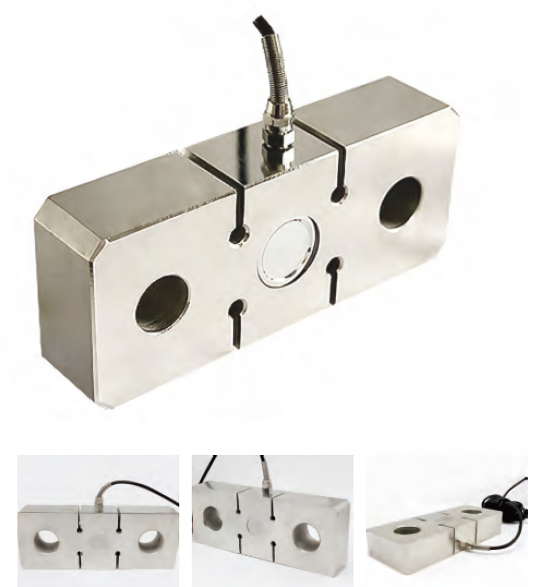

TTM-BH101

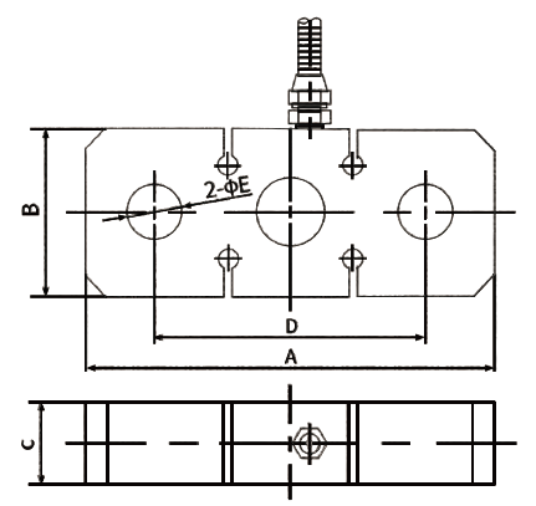

External Dimension外形尺寸
| Capacity | A | B | C | D | 2-ØE |
| 1-3T | 196 | 80 | 30 | 130 | 25 |
| 5-8T | 196 | 80 | 40 | 130 | 25 |
| 10-15T | 260 | 100 | 45 | 170 | 40 |
| 20-30T | 260 | 100 | 50 | 170 | 40 |
| 50T | 360 | 120 | 65 | 230 | 60 |
| 100T | 570 | 230 | 85 | 360 | 96 |
| Capacity量程 | 100T | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 2.0±0.05mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.3%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.3%F.S. | Operating Temp Range工作溫度範圍 | -20-60℃ |
| Repeatability重複性 | 0.1%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 300% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø5x3m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pulluql電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

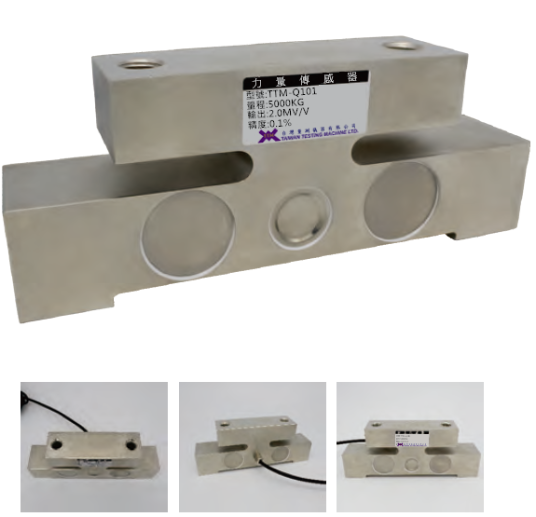

TTM-Q101

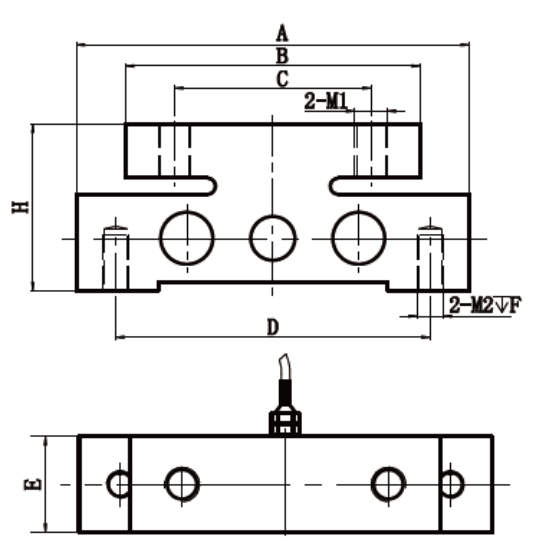

External Dimension外形尺寸
| Capacity | A | B | C | D | E | H | M1 | M2 | F |
| 1-5T | 220 | 140 | 110 | 186 | 45 | 85 | M16 | M12 | 20 |
| 10-20T | 240 | 180 | 120 | 192 | 50 | 93 | M20 | M16 | 30 |
| 30T | 240 | 180 | 120 | 192 | 56 | 102 | M20 | M16 | 30 |
| Capacity量程 | 1-30T | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 1.0±0.05mV/V | Impedance阻抗 | 700Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.2%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.2%F.S. | Operating Temp Range工作溫度範圍 | -20-60℃ |
| Repeatability重複性 | 0.1%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø5x5m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pulluql電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |
TTM-C055

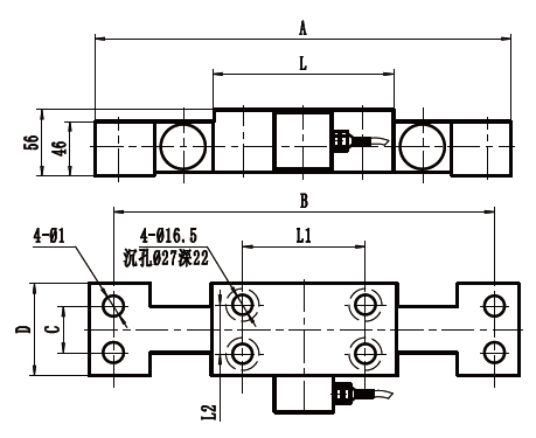

External Dimension外形尺寸
| Capacity | A | B | C | Ø1 | D | L | L1 | L2 |
| 1-5T | 350 | 310 | 38 | 17 | 75 | 152 | 100 | 40 |
| 2.5T | 410 | 355 | 50 | 21 | 100 | 182 | 130 | 60 |
| 4T | 410 | 355 | 50 | 21 | 100 | 212 | 160 | 60 |
| 10-20T | 410 | 355 | 50 | 21 | 100 | 212 | 160 | 60 |
| Capacity量程 | 0-20T | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 1.0±0.05mV/V | Impedance阻抗 | 350/750±5Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.5%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.5%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.5%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.5%F.S. | Maximum overload極限過載 | 300% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø5x3m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pulluql電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |
