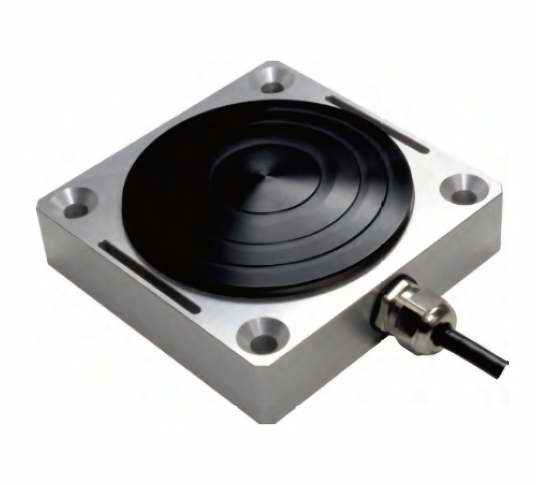

capsule sensor
膜盒傳感器
Product Reviews產品介紹

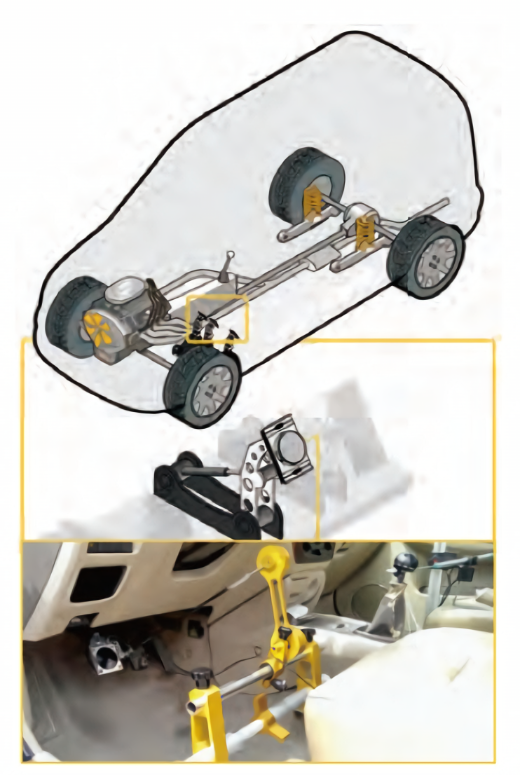

Application fields：
Automobile press Ptting, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot Peld, mold assembly and other industrial testing, automation equipment Peld and testing Peld.
應用領域：
汽車壓裝、自動化組裝、3C產品測試、新能源產品組裝、醫療檢測、機器人顉域、模具組裝及其他工業測試、自動化設備領域和測試領域。

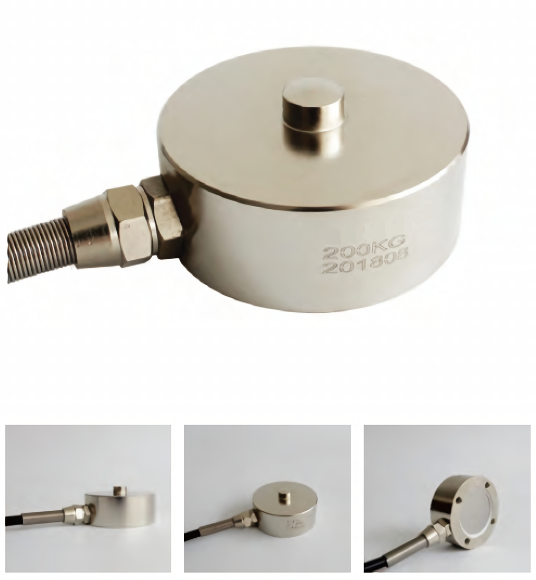

ttm-mh101

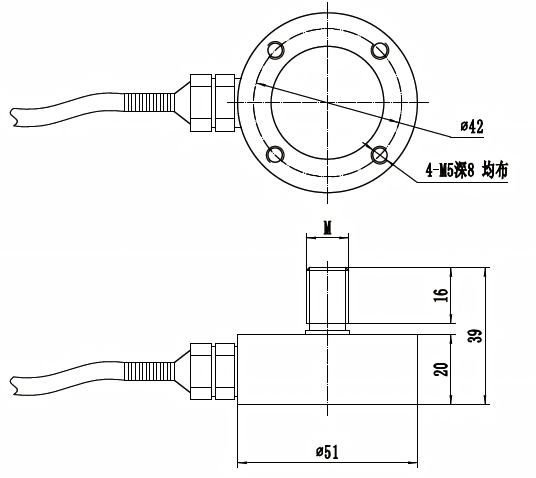

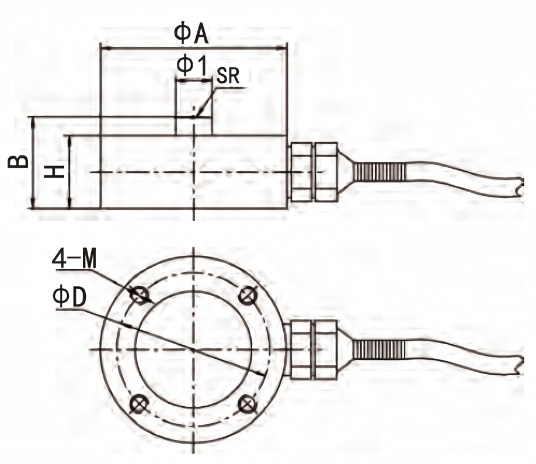

External Dimension外形尺寸
| Capacity | ØA | B | H | Ø1 | ØD | 4-M | SR |
| 50kg-5T | 51 | 25 | 20 | 10 | 42 | M5 | SR50 |
| 6-15T | 88 | 47 | 42 | 18 | 72 | M6 | SR150 |
Parameters Table參數表
| Capacity量程 | 50-15000kg | Material材質 | alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 1.0-2.0±0.01mV/V | Impedance阻抗 | 700Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.3%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.1%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.1%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min) 蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø5x2m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

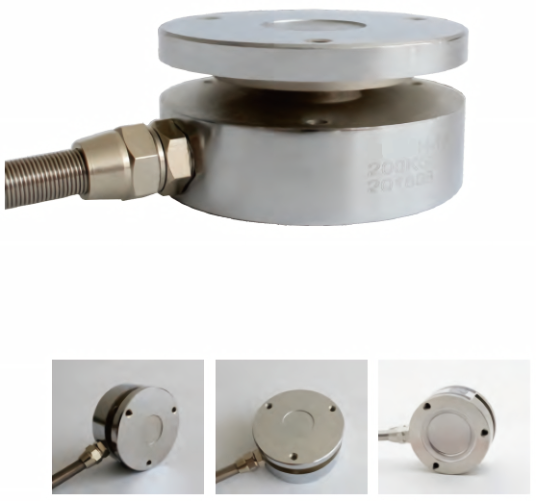

ttm-mh102

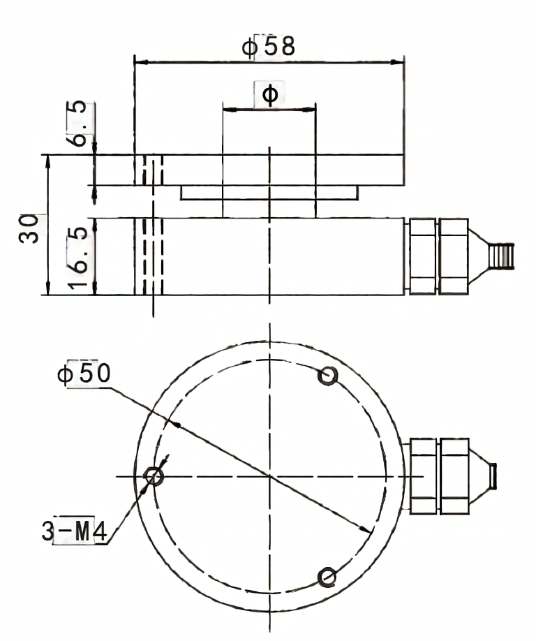

External Dimension外形尺寸
| Capacity | Ø |
| 50kg 100kg 200kg 300kg 500kg | 10 |
| 1T 2T 3T 5T 10T | 20 |
Parameters Table參數表
| Capacity量程 | 50kg-10T | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 1.0-2.0±0.05mV/V | Impedance阻抗 | 700Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.1%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.1%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.1%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min) 蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø5x2m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

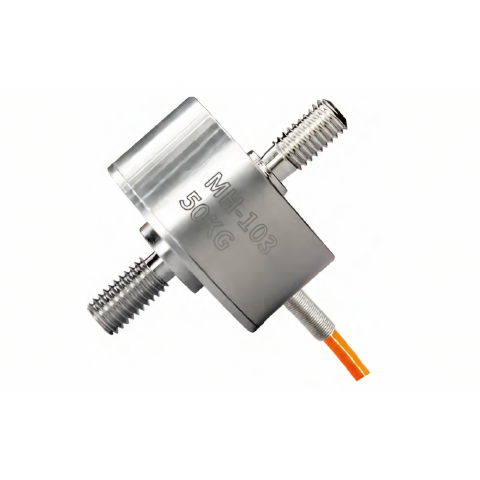

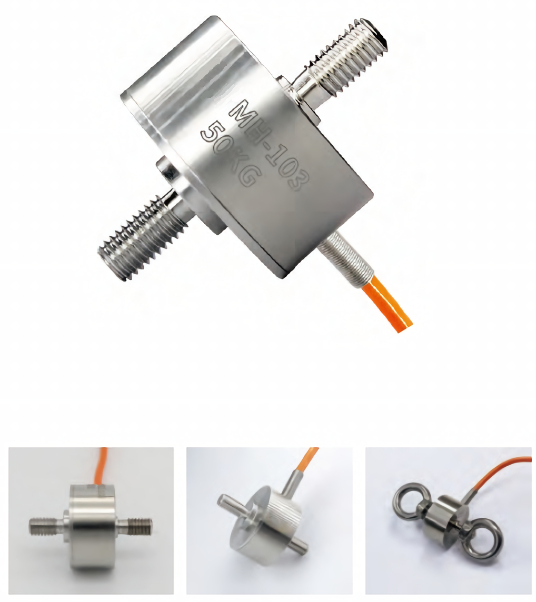

TTM-mh103
External Dimension外形尺寸
| Capacity(kg) | M |
| 1-50 | M5 |
| 60-100 | M6 |
| 200-500 | M8 |
Parameters Table參數表
| Capacity量程 | 0-500kg | Material材質 | Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 1.0-1.5±10%mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.3%F.S. | Voltage電壓 | 5-10v |
| Hysteresis滯後 | 0.1%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.1%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min) 蠕變(30分鐘) | 0.2%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.1%F.S./10℃ | Cable specifications電纜線規格 | Ø3x2m |
| Temp Effect on Zero零點溫度漂移 | 0.1%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

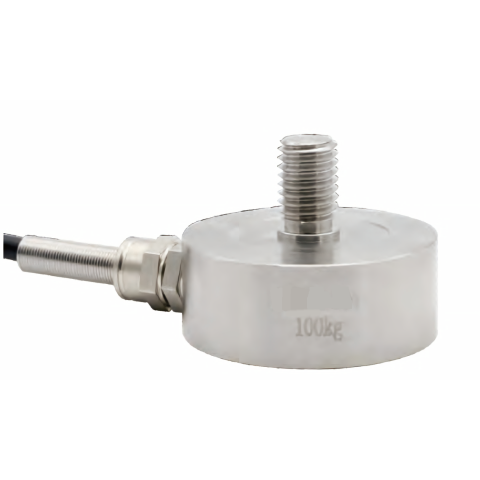

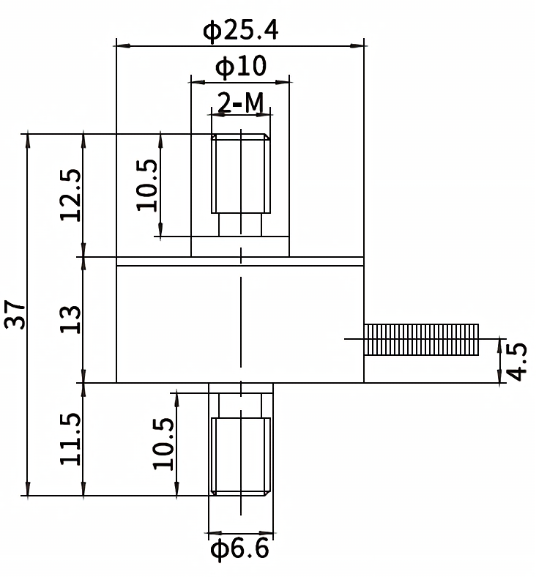

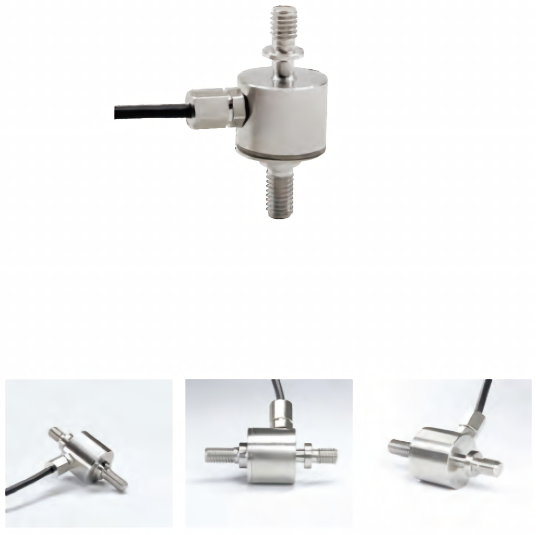

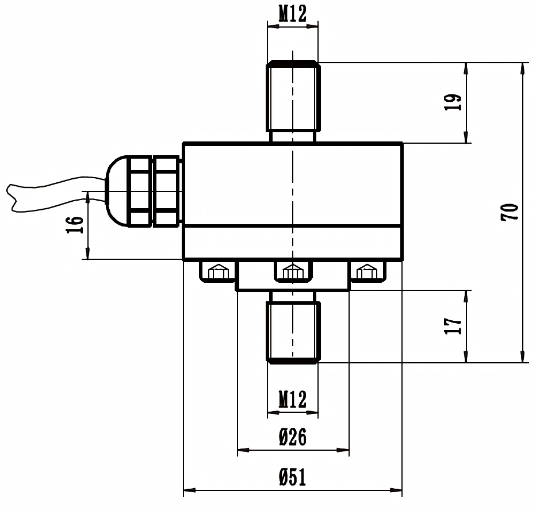

TTM-mh104
External Dimension外形尺寸
| Capacity(kg) | M |
| 20-2000 | M12 |
| 3000-5000 | M16 |
Parameters Table參數表
| Capacity量程 | 0-5T | Material材質 | Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 2.0±10mV/V | Impedance阻抗 | 700Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.3%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.1%F.S. | Operating Temp Range工作溫度範圍 | -20-65℃ |
| Repeatability重複性 | 0.1%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min) 蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.1%F.S./10℃ | Cable specifications電纜線規格 | Ø5x2m |
| Temp Effect on Zero零點溫度漂移 | 0.1%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

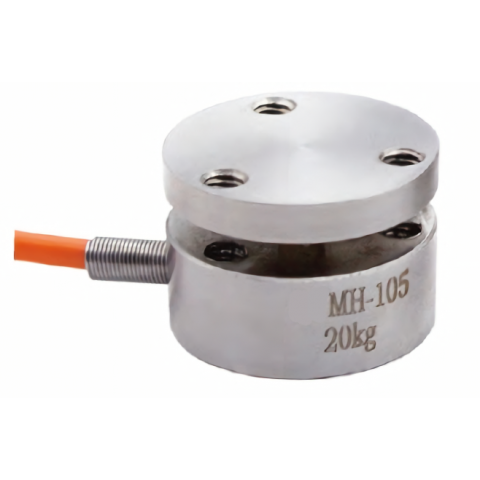

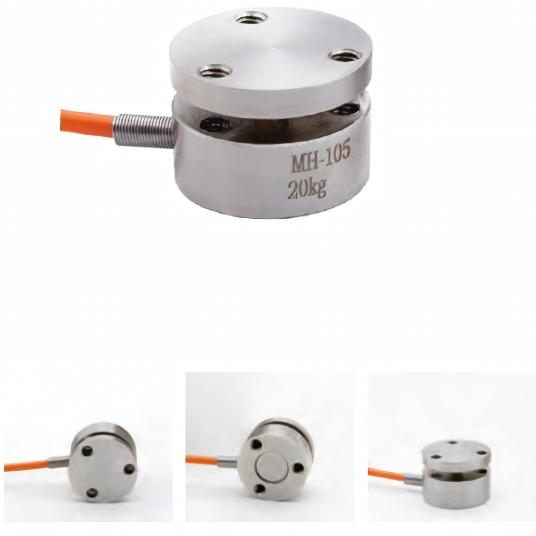

ttm-mh105
External Dimension外形尺寸
| Capacity (kg) |
| 20 30 50 100 200 300 500 1000 2000 |
Parameters Table參數表
| Capacity量程 | 0-2T | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 1.0-2.0±0.05mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.5%F.S. | Voltage電壓 | 5-10v |
| Hysteresis滯後 | 0.3%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.3%F.S. | Safe Overload安全過載 | 120% |
| Creep(30min) 蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 150% |
| Temp Effect on Output溫度靈敏度漂移 | 0.1%F.S./10℃ | Cable specifications電纜線規格 | Ø3x2m |
| Temp Effect on Zero零點溫度漂移 | 0.1%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

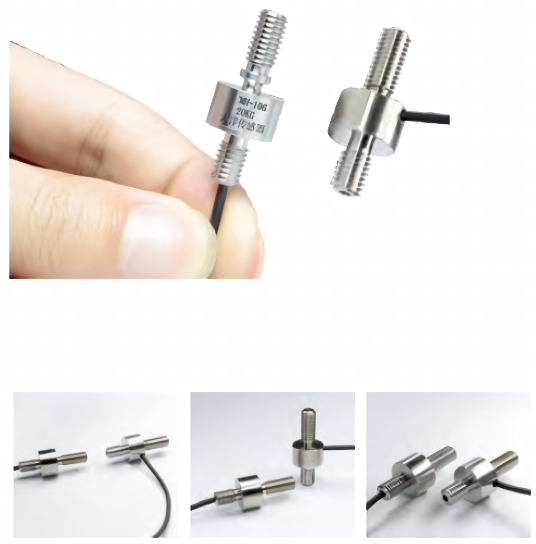

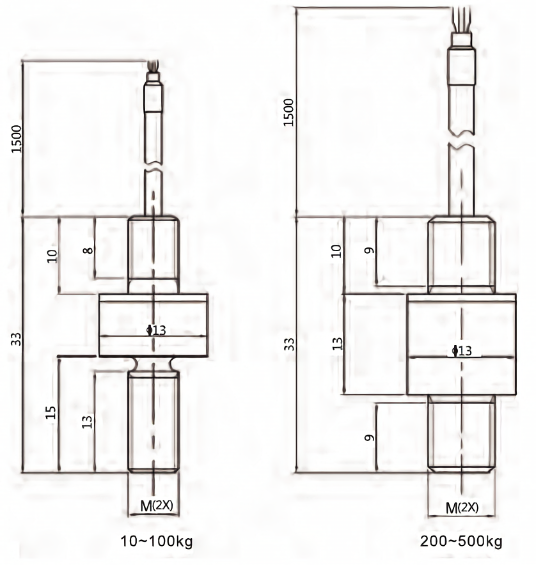

ttm-mh106
External Dimension外形尺寸
| Capacity (kg) | M | 電纜線 | 重量 |
| 10，15，20，30，50，100 | M6 | Ø2 | 0.1kg |
| 200，300，400，500 | 8 | Ø2 | 0.1kg |
Parameters Table參數表
| Capacity量程 | 0-500kg | Material材質 | Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 1.0±20%mV/V | Impedance阻抗 | 350/500/1000Ω |
| Zero Balance零點輸出 | ±5%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 1%F.S. | Voltage電壓 | 5-10v |
| Hysteresis滯後 | 0.5%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.5%F.S. | Safe Overload安全過載 | 120% |
| Creep(30min) 蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.2%F.S./10℃ | Cable specifications電纜線規格 | Ø2x2m |
| Temp Effect on Zero零點溫度漂移 | 0.2%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

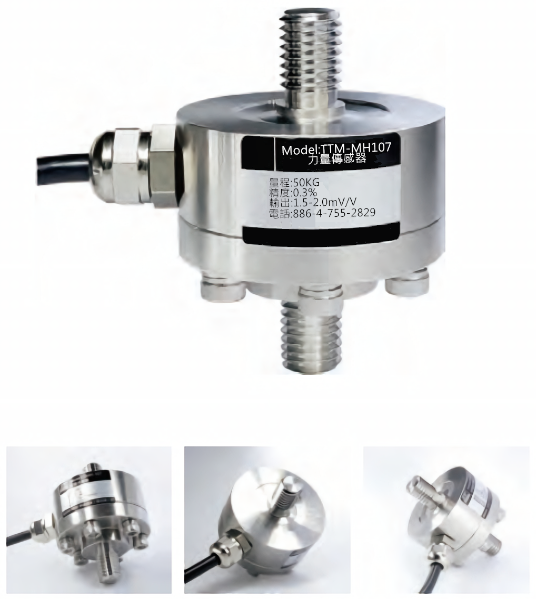

TTM-MH107
External Dimension外形尺寸
| Capacity (KN) |
| 0.5 1 2 3 5 10 20 |
Parameters Table參數表
| Capacity量程 | 0-20KN | Material材質 | Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 1.5-2.0mV/V | Impedance阻抗 | 350/700Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.5%F.S. | Voltage電壓 | 5-15V |
| Hysteresis滯後 | 0.5%F.S. | Operating Temp Range工作溫度範圍 | -20-65℃ |
| Repeatability重複性 | 0.5%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min) 蠕變(30分鐘) | 0.05%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø5x2m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |
TTM-MH113
External Dimension外形尺寸
| Capacity (kg) |
| 10 15 20 30 50 |
Parameters Table參數表
| Capacity量程 | 0-50kg | Material材質 | Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 1.0±10%mV/V | Impedance阻抗 | 500Ω |
| Zero Balance零點輸出 | ±0.05%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.5%F.S. | Voltage電壓 | 5-15V |
| Hysteresis滯後 | 0.5%F.S. | Operating Temp Range工作溫度範圍 | -20-70℃ |
| Repeatability重複性 | 0.5%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min) 蠕變(30分鐘) | 0.2%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.2%F.S./10℃ | Cable specifications電纜線規格 | Ø2x2m |
| Temp Effect on Zero零點溫度漂移 | 0.2%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

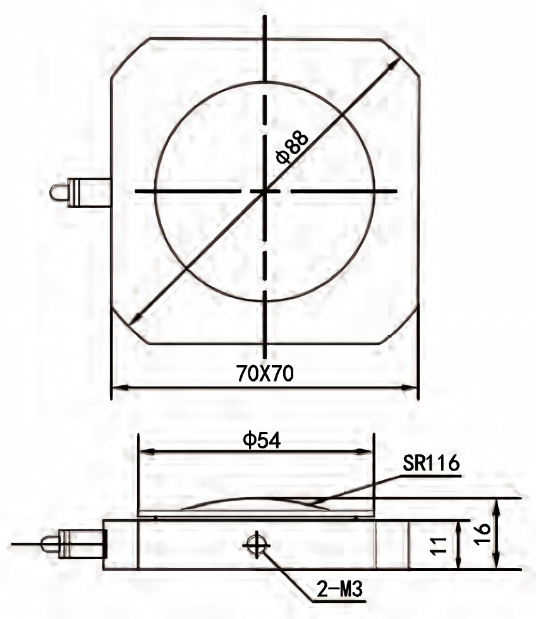

TTM-TB001
External Dimension外形尺寸

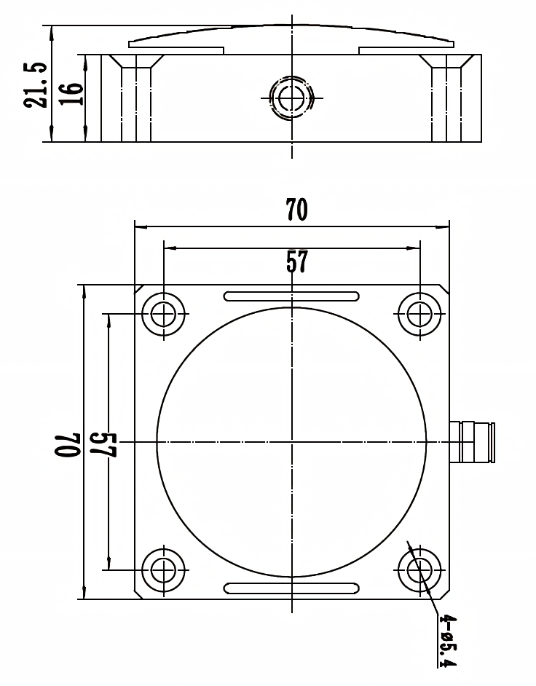

TTM-TB002
External Dimension外形尺寸
| Capacity (kg) |
| 50 100 200 |
Parameters Table參數表
| Capacity量程 | 1-200kg |
| Rated Output輸出靈敏度 | 1.0-1.5mV/V |
| Zero Balance零點輸出 | ±2%F.S. |
| Non-Linearity非線性 | 0.3%F.S. |
| Hysteresis滯後 | 0.3%F.S. |
| Repeatability重複性 | 0.1%F.S. |
| Creep(30min) 蠕變(30分鐘) | 0.05%F.S. |
| Temp Effect on Output溫度靈敏度漂移 | 0.3%F.S./10℃ |
| Temp Effect on Zero零點溫度漂移 | 0.3%F.S./10℃ |
| Response frequency響應頻率 | 10kHz |
| Material材質 | Alloy steel合金鋼 Stainless steel不鏽鋼 Aluminum alloy鋁合金 |
| Impedance阻抗 | 700Ω |
| Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Voltage電壓 | 5-10v |
| Operating Temp Range工作溫度範圍 | -20-70℃ |
| Safe Overload安全過載 | 150% |
| Maximum overload極限過載 | 200% |
| Cable specifications電纜線規格 | Ø3x2m |
| Cable ultimate pull電纜極限拉力 | 10kg |
| TEDS | Can choose可選 |
