flat plate sensor
平板式傳感器
Application應用範圍
1.3C digital detection
2.Booster device
3.Manipulator
1.3C數位檢測
2.助力裝置
3.機械手臂
Product Reviews產品介紹
Characteristic:
Compact structure, high comprehensive precision, good long-term stability, high quality alloy steel surface nickel plating.
Application fields:
Automobile press Ptting, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot Peld, mold assembly and other industrial testing, automation equipment Peld and testing Peld.
特性:
結構緊湊,綜合精度高,長期穩定性好,優質合金鋼表面鍍鎳。
應用領域:
汽車壓裝、自動化組裝、3C產品測試、新能源產品組裝、醫療檢測、機器人領域、模具組裝及其它工業測試、自動化設備領域和測試領域。
TTM-PB001

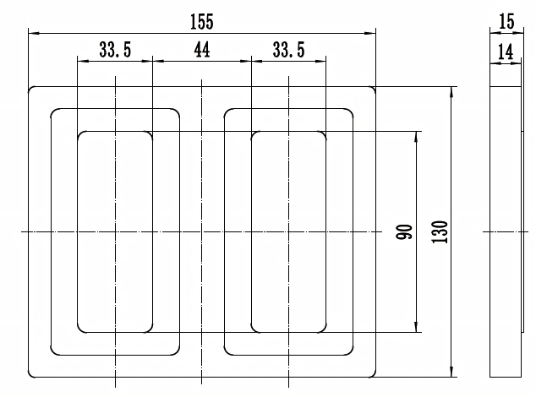

External Dimension外形尺寸
Capacity |
1-5T |
Parameters Table參數表
Capacity量程 | 1-5T | Material材質 | Alloy steel合金鋼 |
Rated Output輸出靈敏度 | 1.5-2.0mV/V | Impedance阻抗 | 750±20Ω |
Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
Non-Linearity非線性 | 0.5%F.S. | Voltage電壓 | 10-15V |
Hysteresis滯後 | 0.5%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
Repeatability重複性 | 0.5%F.S. | Safe Overload安全過載 | 150% |
Creep(30min)蠕變(30分鐘) | 0.3%F.S. | Maximum overload極限過載 | 200% |
Temp Effect on Output溫度靈敏度漂移 | 0.1%F.S./10℃ | Cable specifications電纜線規格 | Ø5x2m |
Temp Effect on Zero零點溫度漂移 | 0.3%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |
TTM-PB002

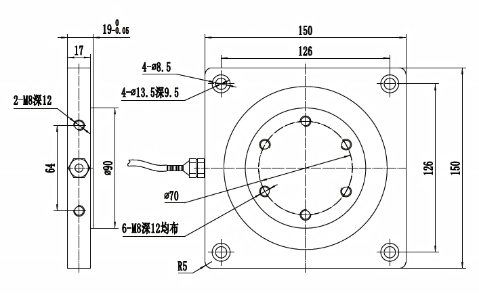

External Dimension外形尺寸
Capacity |
1-3T |
Parameters Table參數表
Capacity量程 | 1-3T | Material材質 | Alloy steel合金鋼 |
Rated Output輸出靈敏度 | 1.5-2.0mV/V | Impedance阻抗 | 750±20Ω |
Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
Non-Linearity非線性 | 0.5%F.S. | Voltage電壓 | 10-15V |
Hysteresis滯後 | 0.5%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
Repeatability重複性 | 0.5%F.S. | Safe Overload安全過載 | 150% |
Creep(30min)蠕變(30分鐘) | 0.3%F.S. | Maximum overload極限過載 | 200% |
Temp Effect on Output溫度靈敏度漂移 | 0.1%F.S./10℃ | Cable specifications電纜線規格 | Ø5x2m |
Temp Effect on Zero零點溫度漂移 | 0.3%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |
TTM-PB003

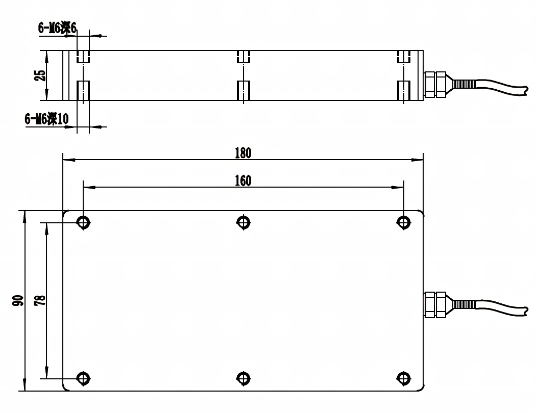

External Dimension外形尺寸
Capacity |
1-5(T) |
Parameters Table參數表
Capacity量程 | 1-5T | Material材質 | Alloy steel合金鋼 |
Rated Output輸出靈敏度 | 1.5-2.0mV/V | Impedance阻抗 | 750±20Ω |
Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
Non-Linearity非線性 | 0.5%F.S. | Voltage電壓 | 10-15V |
Hysteresis滯後 | 0.5%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
Repeatability重複性 | 0.5%F.S. | Safe Overload安全過載 | 150% |
Creep(30min)蠕變(30分鐘) | 0.3%F.S. | Maximum overload極限過載 | 200% |
Temp Effect on Output溫度靈敏度漂移 | 0.1%F.S./10℃ | Cable specifications電纜線規格 | Ø5x2m |
Temp Effect on Zero零點溫度漂移 | 0.3%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |
