Weighing Module / 稱重
Weighing Module / 稱重傳感器
It has the advantages of bi-directional tension and compression, compact structure, hi...
Detail

Weighing module
稱重傳感器

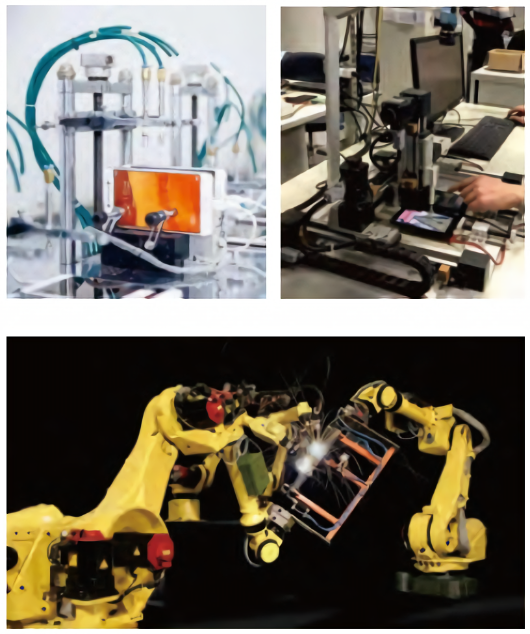

Application應用範圍

  • 3C digital detection
  • Booster device
  • Manipulator
  • 3C數位檢測
  • 助力裝置
  • 機械手臂

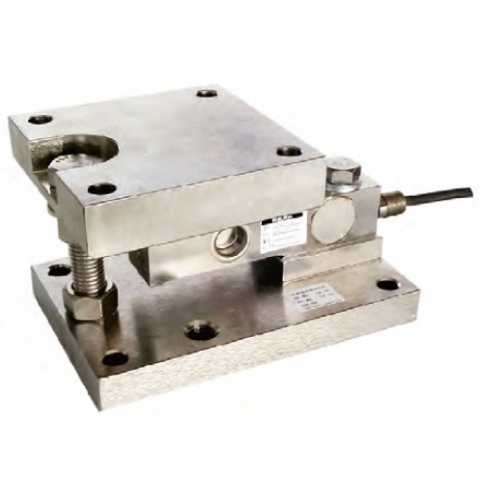

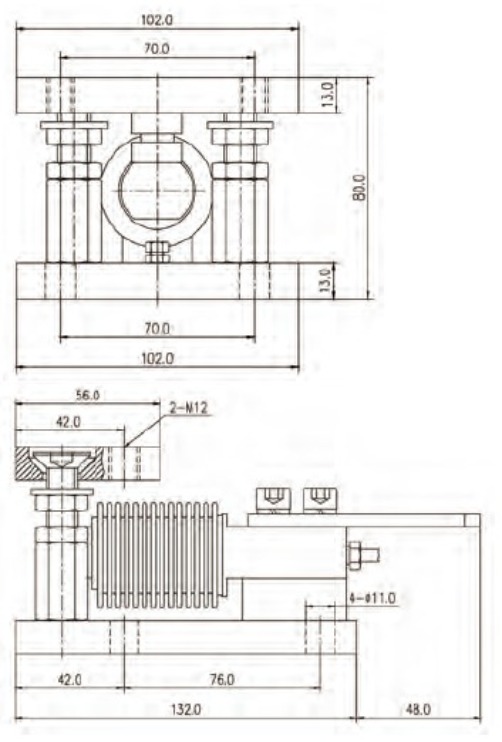

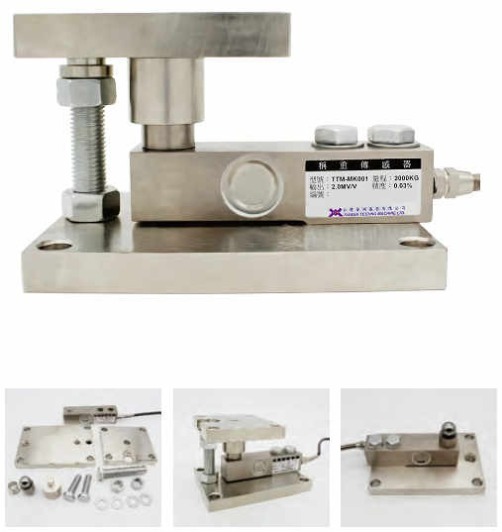

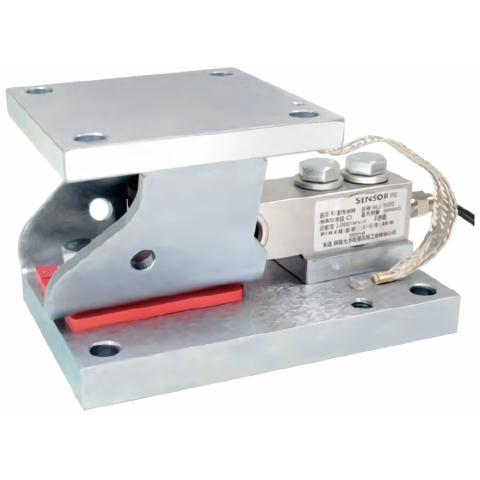

TTM-MK001

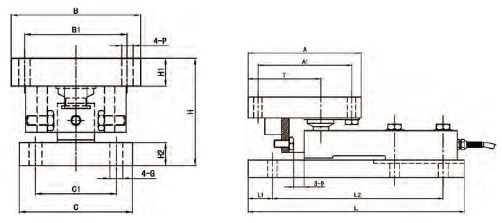

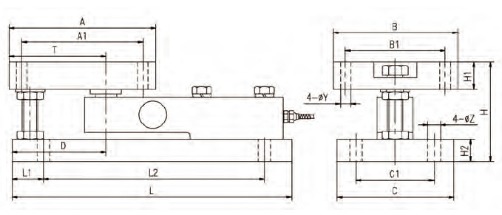

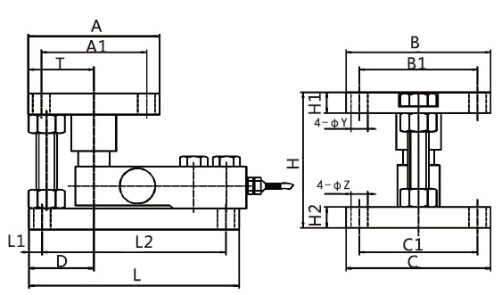

External Dimension外形尺寸

Capacity A A1 B B1 L L1 L2 C C1 H H1 H2 Y Z T D
0.1-2T 100 80 110 90 160 10 140 110 90 103.5 16 16 13 13 50 49.5
3-5T 150 122 110 80 228 14 200 110 80 109.5 26.5 24 13 13 75 75
10-15T 180 140 140 100 290 20 250 140 100 157.5 30 30 22 22 90 90

Parameters Table參數表

Capacity量程 0-15T Material材質 Alloy steel合金鋼
Rated Output輸出靈敏度 2.0±10%mV/V Impedance阻抗 350Ω
Zero Balance零點輸出 ±2%F.S. Insulation絕緣電阻 ≧5000MΩ/100VDC
Non-Linearity非線性 0.1%F.S. Voltage電壓 5-10v
Hysteresis滯後 0.1%F.S. Operating Temp Range工作溫度範圍 -20-80℃
Repeatability重複性 0.1%F.S. Safe Overload安全過載 120%
Creep(30min)蠕變(30分鐘) 0.05%F.S. Maximum overload極限過載 150%
Temp Effect on Output溫度靈敏度漂移 0.05%F.S./10℃ Cable specifications電纜線規格 Ø5x3m
Temp Effect on Zero零點溫度漂移 0.05%F.S./10℃ Cable ultimate pull電纜極限拉力 10kg
Response frequency響應頻率 10kHz TEDS Can choose可選

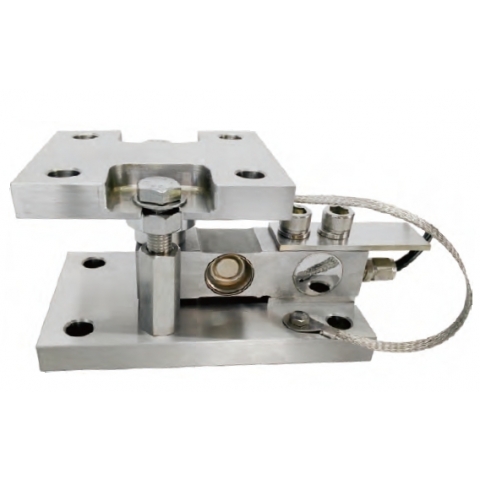

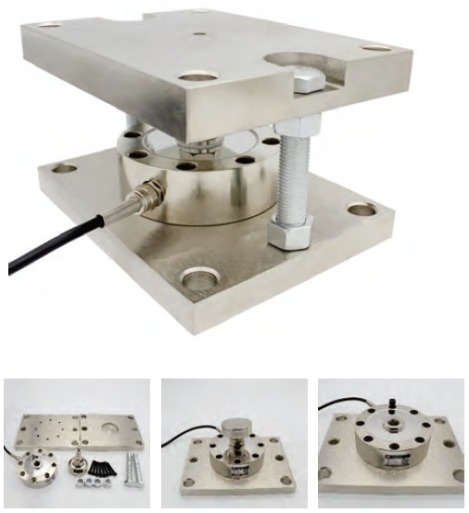

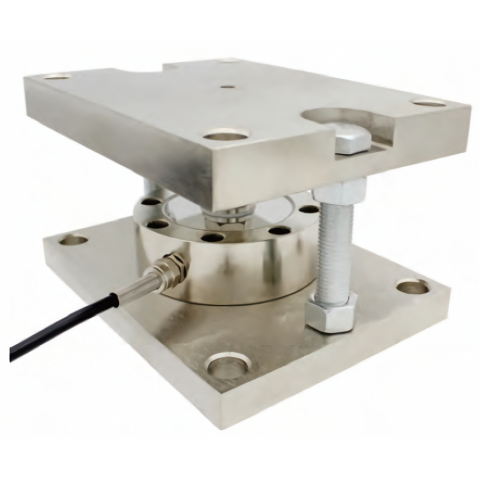

TTM-MK002

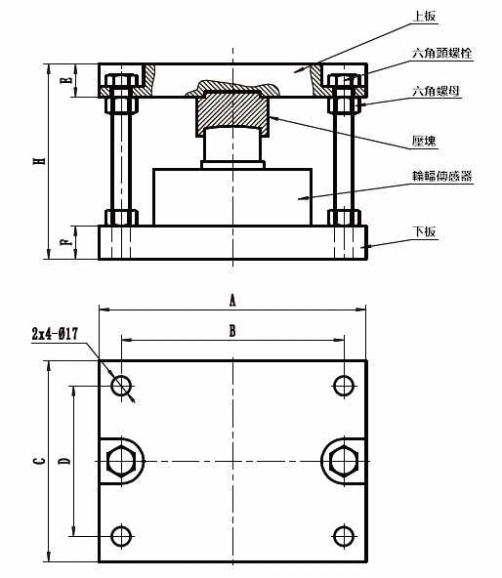

External Dimension外形尺寸

Capacity A B C D E H
1-5T 200 170 150 120 24 110
10-20T 200 160 160 125 25 145
30T 240 200 180 135 30 175
40-60T 240 200 180 135 30 175


Parameters Table參數表

Capacity量程 0-60T Material材質 Stainless steel不鏽鋼
Alloy steel合金鋼
Rated Output輸出靈敏度 2.0±0.002%mV/V Impedance阻抗 700/1400Ω
Zero Balance零點輸出 ±2%F.S. Insulation絕緣電阻 ≧5000MΩ/100VDC
Non-Linearity非線性 0.05%F.S. Voltage電壓 5-15v
Hysteresis滯後 0.03%F.S. Operating Temp Range工作溫度範圍 -20-80℃
Repeatability重複性 0.03%F.S. Safe Overload安全過載 150%
Creep(30min)蠕變(30分鐘) 0.03%F.S. Maximum overload極限過載 200%
Temp Effect on Output溫度靈敏度漂移 0.03%F.S. Cable specifications電纜線規格 Ø5x5m
Temp Effect on Zero零點溫度漂移 0.05%F.S./10℃ Cable ultimate pull電纜極限拉力 10kg
Response frequency響應頻率 10kHz TEDS Can choose可選

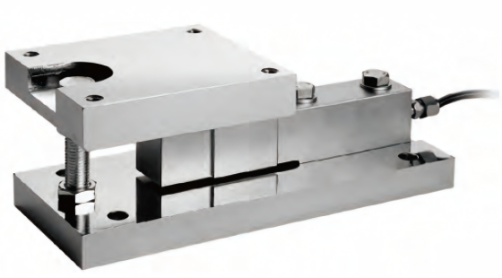

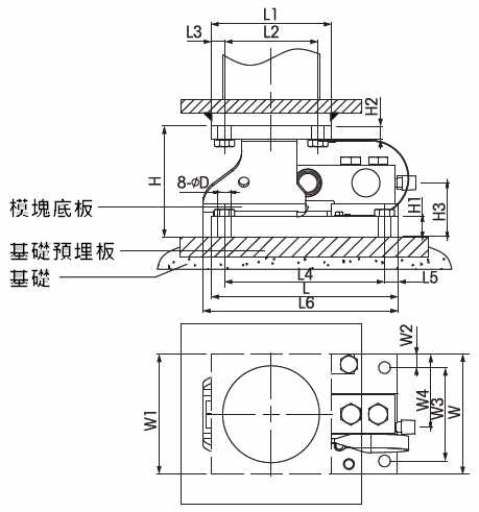

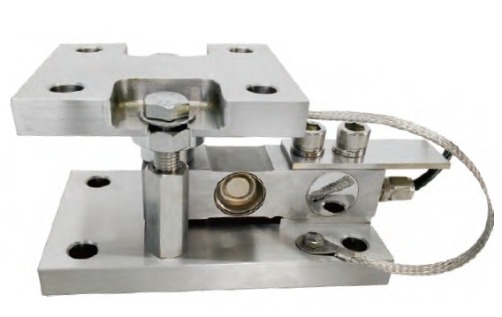

TTM-MK003

External Dimension外形尺寸

        Capacity                 D                 H                 H1                 H2                 H3                 H4                 L                 L1         L2 L3 L4 L5 L6 W W1 W2 W3 W4 A
        0-100kg                 10                 83                 12.7                 8                 41.0                 10                 165                 102         82 10 145 10 - 102 102 10 82 60.0 M8
300kg
500kg
1T
3T		 11.2 105.2 19.1 12.7 50.9
51.3		 15 177.9 114.4 89.0 12.7 152.4 12.7 185.6 114.4 114.4 12.7 89.0 66.6
69.7		 M10
5T 17.5 136.6 25.4 19.1 70.3 20 235.0 152.4 101.6 25.4 184.2 25.4 - 152.4 152.4 25.4 101.6 91.7 M16


Parameters Table參數表

Capacity量程 0-5T Material材質 Alloy steel合金鋼
Stainless steel不鏽鋼
Rated Output輸出靈敏度 2.0±0.002mV/V Impedance阻抗 350Ω
Zero Balance零點輸出 ±0.02%F.S. Insulation絕緣電阻 ≧5000MΩ/100VDC
Non-Linearity非線性 0.02%F.S. Voltage電壓 5-10v
Hysteresis滯後 0.02%F.S. Operating Temp Range工作溫度範圍 -20-60℃
Repeatability重複性 0.02%F.S. Safe Overload安全過載 150%
Creep(30min)蠕變(30分鐘) 0.02%F.S. Maximum overload極限過載 200%
Temp Effect on Output溫度靈敏度漂移 0.002%F.S./10℃ Cable specifications電纜線規格 Ø5x5m
Temp Effect on Zero零點溫度漂移 0.002%F.S./10℃ Cable ultimate pull電纜極限拉力 10kg
Response frequency響應頻率 10kHz TEDS Can choose可選

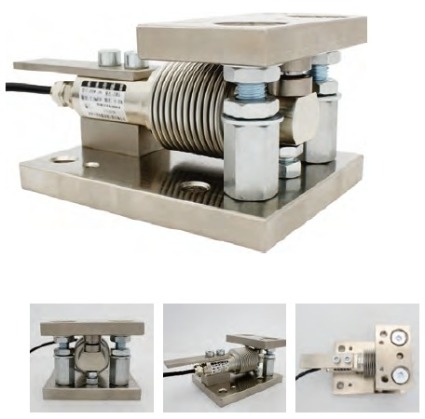

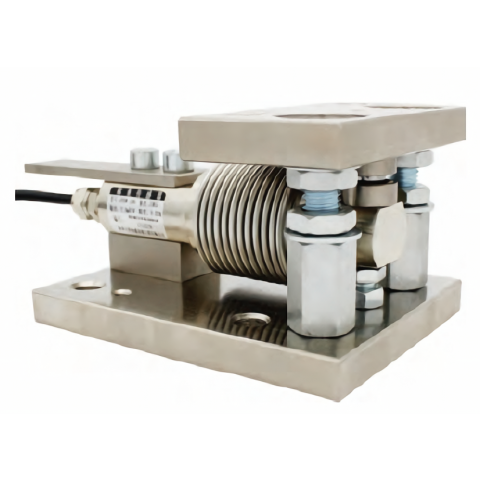

TTM-MK006

External Dimension外形尺寸

Capacity 10  20  50  100  200  500


Parameters Table參數表

Capacity量程 0-500kg Material材質 Alloy steel合金鋼
Stainless steel不鏽鋼
Rated Output輸出靈敏度 2.0±0.002mV/V Impedance阻抗 350Ω
Zero Balance零點輸出 ±1%F.S. Insulation絕緣電阻 ≧5000MΩ/100VDC
Non-Linearity非線性 0.3%F.S. Voltage電壓 5-15v
Hysteresis滯後 0.3%F.S. Operating Temp Range工作溫度範圍 -20-80℃
Repeatability重複性 0.3%F.S. Safe Overload安全過載 150%
Creep(30min)蠕變(30分鐘) 0.1%F.S. Maximum overload極限過載 200%
Temp Effect on Output溫度靈敏度漂移 0.1%F.S./10℃ Cable specifications電纜線規格 Ø5x3m
Temp Effect on Zero零點溫度漂移 0.1%F.S./10℃ Cable ultimate pull電纜極限拉力 10kg
Response frequency響應頻率 10kHz TEDS Can choose可選

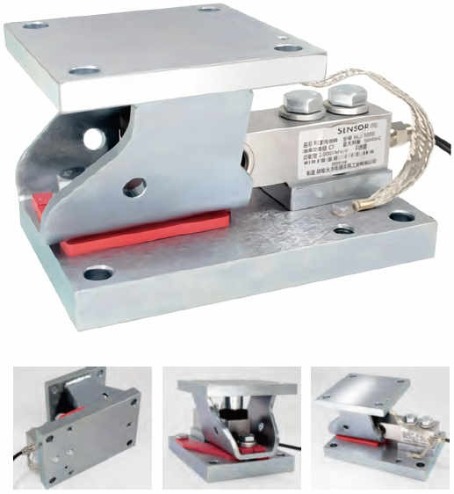

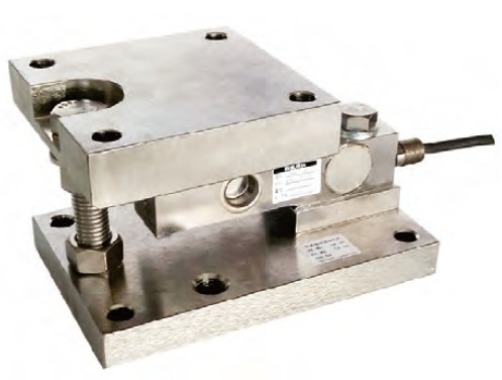

TTM-MK007

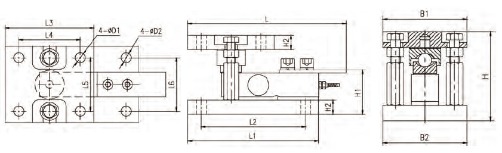

External Dimension外形尺寸

        Capacity         H H1 H2 B1 B2 D1 D2 L L1 L2 L3 L4 L5 L6
        0.25-2.5T         106 58 18 100 100 13 13 210 175 140 116 80 70 70
3-5T 135 73 23 150 150 17 17 270 235 200 150 100 90 90
7.5-10T 164 93.3 38(上)
28.5(下)		 180 180 26 26 345.2 310 250 210.4 150.4 110 110



Parameters Table參數表

Capacity量程 0-10T Material材質 Stainless steel不鏽鋼
Rated Output輸出靈敏度 2.0±0.002mV/V Impedance阻抗 350Ω
Zero Balance零點輸出 ±1%F.S. Insulation絕緣電阻 ≧2000MΩ/100VDC
Non-Linearity非線性 0.03%F.S. Voltage電壓 5-15v
Hysteresis滯後 0.03%F.S. Operating Temp Range工作溫度範圍 -20-80℃
Repeatability重複性 0.03%F.S. Safe Overload安全過載 150%
Creep(30min)蠕變(30分鐘) 0.03%F.S. Maximum overload極限過載 200%
Temp Effect on Output溫度靈敏度漂移 0.03%F.S./10℃ Cable specifications電纜線規格 Ø5x3m
Temp Effect on Zero零點溫度漂移 0.03%F.S./10℃ Cable ultimate pull電纜極限拉力 10kg
Response frequency響應頻率 10kHz TEDS Can choose可選

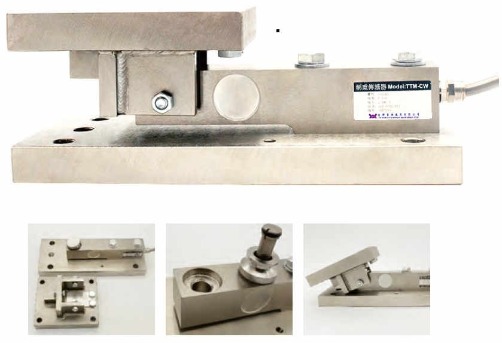

TTM-CW

External Dimension外形尺寸

        Capacity         L L1 L2 A A1 B B1 C C1 H H1 H2 T P G D
0.3,0.5,1,2,3T 286 32 226 150 124 128 102 112 80 106.9 28 23 96 M10 Φ13 1.6
5T 317.5 32 257 178 146 152 120 152 102 146.2 38 30 99 M16 Φ17 1.6
10T 360 32 295 184 152 154 122 154 106 215.7 45 45 105 M20 Φ21 3
15,20T 400 25 350 220 170 220 170 220 170 255.7 55 55 115 M24 Φ26 3



Parameters Table參數表

Capacity量程 0-20T Material材質 Alloy steel合金鋼
Stainless steel不鏽鋼
Rated Output輸出靈敏度 2.0±0.002mV/V Impedance阻抗 350Ω
Zero Balance零點輸出 ±2%F.S. Insulation絕緣電阻 ≧5000MΩ/100VDC
Non-Linearity非線性 0.03%F.S. Voltage電壓 5-15v
Hysteresis滯後 0.03%F.S. Operating Temp Range工作溫度範圍 -20-80℃
Repeatability重複性 0.03%F.S. Safe Overload安全過載 150%
Creep(30min)蠕變(30分鐘) 0.03%F.S. Maximum overload極限過載 200%
Temp Effect on Output溫度靈敏度漂移 0.02%F.S./10℃ Cable specifications電纜線規格 Ø5x2m
Temp Effect on Zero零點溫度漂移 0.02%F.S./10℃ Cable ultimate pull電纜極限拉力 10kg
Response frequency響應頻率 10kHz TEDS Can choose可選


TTM-FW

External Dimension外形尺寸

        Capacity         A A1 B B1 L L1 L2 C C1 H H1 H2 Y Z T D
0.5-3T 150 124 128 102 286 32 226 112 80 102 28 23 13 13 99 96
5-8T 178 146 152 120 317.5 32 257 152 102 130 38 29.5 17 17 102 99
10T 184 152 154 122 360 32 295 154 106 168 45 45 21 21 108 105
15-25T 220 170 220 170 400 25 350 220 170 213 55 55 26 26 115 115



Parameters Table參數表

Capacity量程 0-25T Material材質 Alloy steel合金鋼
Stainless steel不鏽鋼
Rated Output輸出靈敏度 2.0±0.002mV/V Impedance阻抗 350Ω
Zero Balance零點輸出 ±1%F.S. Insulation絕緣電阻 ≧2000MΩ/100VDC
Non-Linearity非線性 0.03%F.S. Voltage電壓 5-15v
Hysteresis滯後 0.03%F.S. Operating Temp Range工作溫度範圍 -20-80℃
Repeatability重複性 0.03%F.S. Safe Overload安全過載 150%
Creep(30min)蠕變(30分鐘) 0.03%F.S. Maximum overload極限過載 200%
Temp Effect on Output溫度靈敏度漂移 0.03%F.S./10℃ Cable specifications電纜線規格 Ø5x5m
Temp Effect on Zero零點溫度漂移 0.03%F.S./10℃ Cable ultimate pull電纜極限拉力 10kg
Response frequency響應頻率 10kHz TEDS Can choose可選


TTM-FWC

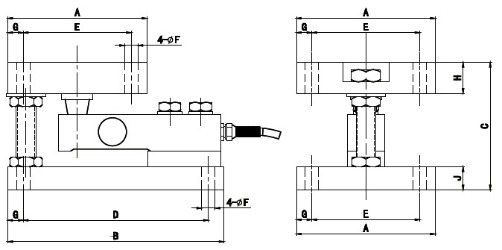

External Dimension外形尺寸

        Capacity         A B C D E ΦF G H J K
0-3T 114.3 177.8 104.8 152.4 88.9 11 12.7 25.4 19 50.8
5T 152.4 235 136.5 184.2 101.6 17.5 25.4 31.8 25.4 65.1
10T 203.2 355.6 190.5 304.8 152.4 20.6 25.4 44.5 44.5 96.8
20T 228.6 406.4 228.6 342.9 165.1 28.5 31.8 50.8 50.8 114



Parameters Table參數表

Capacity量程 0-20T Material材質 Alloy steel合金鋼
Stainless steel不鏽鋼
Rated Output輸出靈敏度 2.0±0.05mV/V Impedance阻抗 350Ω
Zero Balance零點輸出 ±1%F.S. Insulation絕緣電阻 ≧5000MΩ/100VDC
Non-Linearity非線性 0.03%F.S. Voltage電壓 5-15v
Hysteresis滯後 0.03%F.S. Operating Temp Range工作溫度範圍 -20-80℃
Repeatability重複性 0.02%F.S. Safe Overload安全過載 150%
Creep(30min)蠕變(30分鐘) 0.03%F.S. Maximum overload極限過載 200%
Temp Effect on Output溫度靈敏度漂移 0.03%F.S./10℃ Cable specifications電纜線規格 Ø5x3m
Temp Effect on Zero零點溫度漂移 0.05%F.S./10℃ Cable ultimate pull電纜極限拉力 10kg
Response frequency響應頻率 10kHz TEDS Can choose可選
