üApplication Function

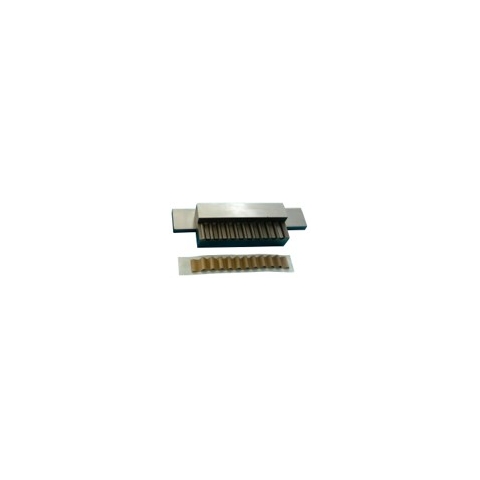

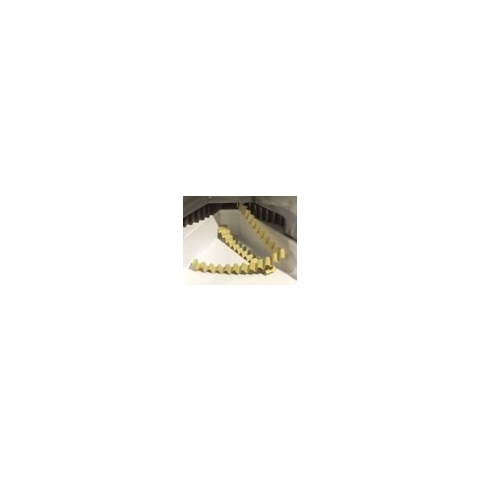

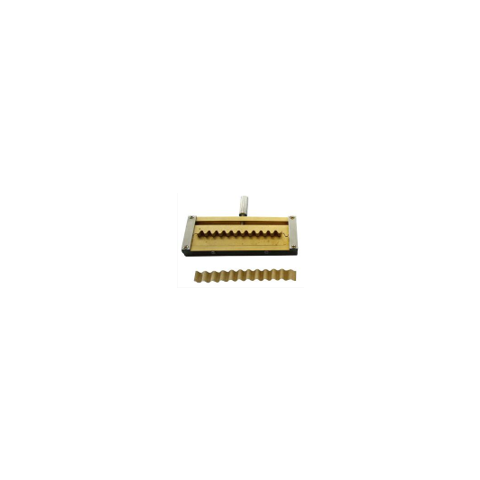

TTM-CW01 Concora Medium Flutter This instrument is a corrugated core paper for corrugated core flat. But relation like this is very destructive pressure (CMT) and corrugated vertical pressure (CCT) test samples to suppress the standard corrugated waveform (i.e., corrugated core paper laboratory). Corrugated core paper can be used to determine the flat crush strength (CMT) and vertical crush strength (CCT) of corrugated base paper with a computer compression teste.üStandards
ISO 7263, TAPPI T809, GB/T 2679.6, QB/T 1061| Items | Details |
| Power Supply | AC 220V 50Hz |
| Standard type | type A |
| Working speed | 4.5 r/min |
| Temperature display resolution | 1℃ |
| Temperature measurement accuracy | 0.5 level ± 1 word |
| Operating temperature adjustable range | room temperature ~ 200 °C |
| Working pressure adjustable range | (49 ~ 108) N |
| Standard operating temperature | 175 ° C |
| Spring tension | 100 N |
| Dimension | 520(L)×380(W)×335(H) mm |
| Net weight | 45kg |
