Product Description:
Our chamber adopts high-precision microcomputer touch-type temperature and humidity controller, with high-stability platinum temperature measurement resistance body, and wind speed circulation system for temperature and humidity test to achieve uniform, accurate and stable temperature and humidity control. Independent heating, cooling, humidification, cooling and dehumidification systems can be used for different environmental tests of high temperature, low temperature and constant temperature and constant humidity.

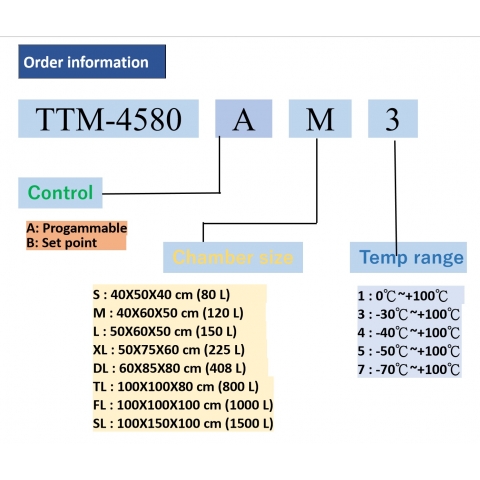

| Model | TTM-4580A-S7 | TTM-4580A-M7 | TTM-4580A-L7 | TTM-4580A-XL7 |
| System | Balanced Temperature & Humidity control system | |||
| Interior size (WxHxD) | 40x50x40 cm | 40x60x50 cm | 50x60x50 cm | 50x75x60 cm |
| Temp. range | -70°C~+100 °C (+150°C optional) | |||

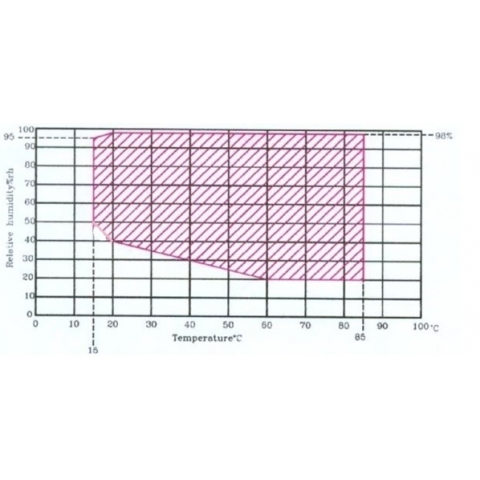

| Humid. range | 15~98% R.H | |||
| Temp. fluctuation | ±0.3°C | |||
| Humid. fluctuation | ±1.5%RH | |||
| Humid. uniformity | ±1.0°C | |||
| Humid. uniformity | ±3%RH | |||
| Heating up time | +20°C~+100°C, approx. 35 min. | |||
| Cooling down time | +20°C to -70°C within 70 min. | |||
| Interior material | SUS#304 stainless steel plate | |||
| Exterior material | SUS#304 stainless steel plate | |||
| Insulation material | Rigid polyurethane foam & glass wool at 150°C | |||
| Refrigeration system | Air cooled hermetic compressor, two-stage refrigeration system |
|||
| Safety devices | no fuse breaker, refrigerator overload relay, refrigerator high pressure switch, over-temp. protector, protection fuse, water level protector, protection relay, system trouble monitor alarm | |||
| Accessories | viewing window, shelves (freely adjustable 2 pcs), cable port (50 mm dia.) and chamber lamp | |||
| Dimension (WxHxD) | 113x138x67 cm | 113x148x77 cm | 123x148x77 cm | 123x163x87 cm |
| Power | 1Ø 220V 50/60Hz or 1Ø 240V 50Hz | |||
| Model | TTM-4580A-DL7 | TTM-4580A-TL7 | TTM-4580A-FL7 | TTM-4580A-SL7 |
| System | Balanced Temperature & Humidity control system | |||
| Interior size (WxHxD) | 60x85x80 cm | 100x100x80 cm | 100x100x100 cm | 100x150x100 cm |
| Temp. range | -70°C~+100 °C (+150°C optional) | |||
| Humid. range | 15~98% R.H | |||
| Temp. fluctuation | ±0.3°C | |||
| Humid. fluctuation | ±2%RH | |||
| Humid. uniformity | ±1.0°C | |||
| Humid. uniformity | ±5%RH | |||
| Heating up time | +20°C~+100°C, approx 35 min. | |||
| Cooling down time | +20°C to -70°C within 80 min. | |||
| Interior material | SUS#304 stainless steel plate | |||
| Exterior material | SUS#304 stainless steel plate | |||
| Insulation material | Rigid polyurethane foam & glass wool at 150°C | |||
| Refrigeration system | Air cooled hermetic compressor, two-stage refrigeration system |
|||
| Safety devices | no fuse breaker, refrigerator overload relay, refrigerator high pressure switch, over-temp. protector, protection fuse, water level protector, protection relay, system trouble monitor alarm | |||
| Accessories | viewing window, shelves (freely adjustable 2 pcs), cable port (50 mm dia.) and chamber lamp | |||
| Dimension (WxHxD) | 133x173x107 cm | 173x188x107 cm | 173x188x127 cm | 180x186x145 cm |
| Power | 1Ø 220V 50/60Hz or 3Ø 220V/380V/415V/440V 50Hz | |||
