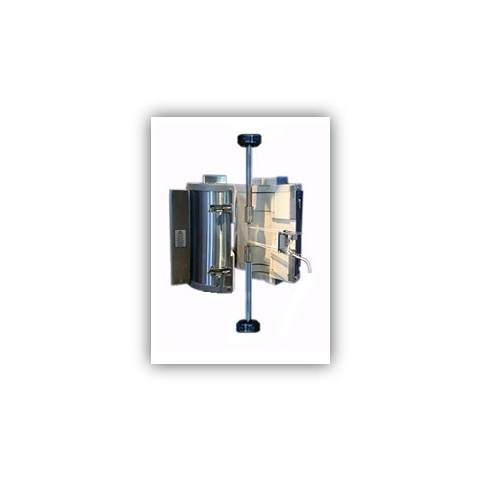

Thermostat Testing Chamber
Features
This testing chamber is used to imitate different circumstances for tensile or bending testing, which makes tests matching actual testing needs, and increase testing reliability.
1.Use the high precision microcomputer temperature controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature test.
2.Control temperature well-distributed, precisely and steady.
3.Completely independent system separate for testing in high temperature, low temperature and constant temperature environment.
Specification
Features
This testing chamber is used to imitate different circumstances for tensile or bending testing, which makes tests matching actual testing needs, and increase testing reliability.
1.Use the high precision microcomputer temperature controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature test.
2.Control temperature well-distributed, precisely and steady.
3.Completely independent system separate for testing in high temperature, low temperature and constant temperature environment.
Specification
| MODEL | A | B | C | D | |
| Temperature Range | Rt~+200°C | -30~+200°C | -50~+200°C | Rt~+800°C | |
| Inner Size | 20 x 30 x 60(cm) |
ø80 x 320 | |||
| Outer Size | 40 x 100 x 132(cm) |
ø280 x 320 | |||
| Power supply | 1Ø, 220V | 3Ø, 220V | |||
| Method of | Heater | Heater & refrigerant | Heater | ||
| Temperature control method | PID auto temperature control by digital indicator | ||||

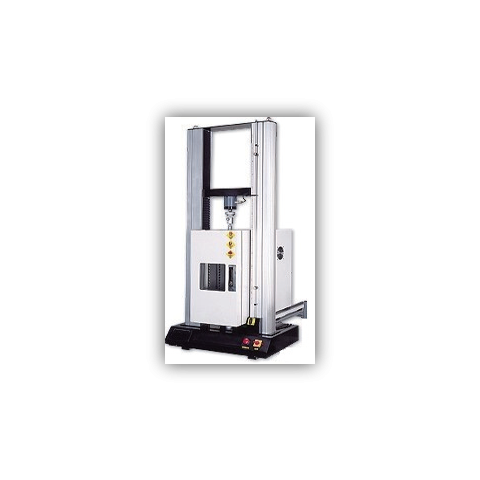

| This chamber is suitable for tensile testing machine series of RK-11001 | |||||
