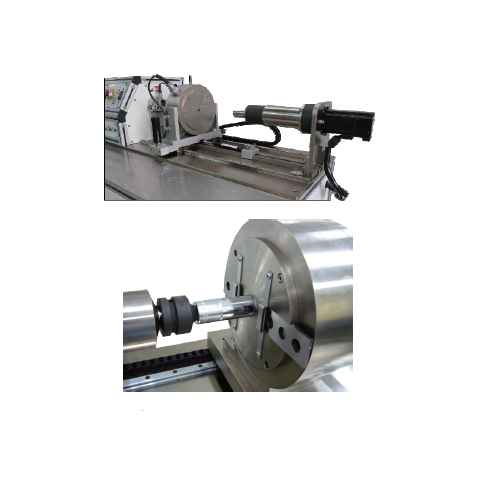

TTM-T Series Horizontal Universal Torsion Testing Machine
Features
Features
uTorque and life tests for material, parts, hand tools
uProfessional in bolts, nuts torque, tension, friction
uPrevailing torque test for locking nut
uTorque tests satisfy every automobile industries
uHigh precision, efficiency controlling system
uHumanized and multi-functions software
uServo motor and high precision reducer
uAluminum-extrusion table to store accessory
uConfirm to ISO 16047, ISO 2320, ASTM, JIS, GBT, SAE and others related to automobile industries
uDouble motor system(Optional)

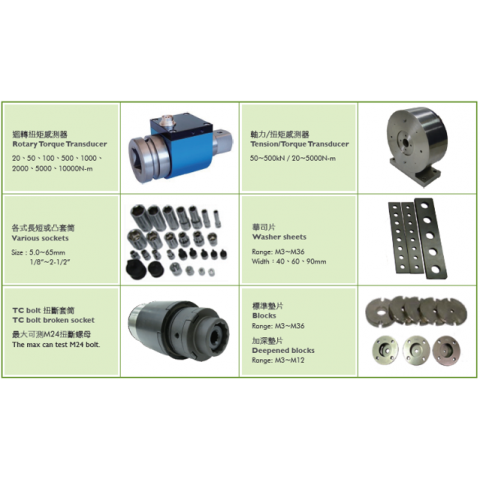

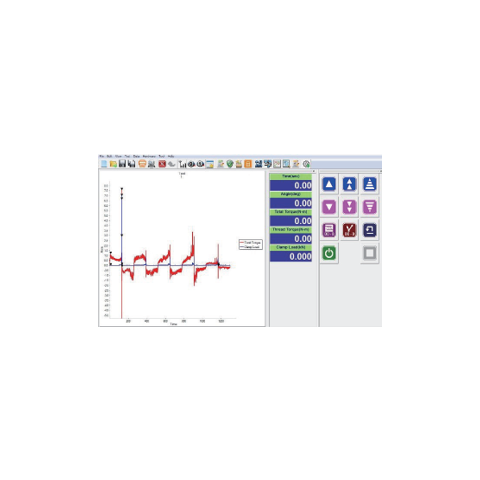

Software
Software
uCompatible with 32-bits/64-bits; Win XP/7/10
uHumanized interface with big display and button
uChinese and English language switchable
uPowerful analysis functions to meet standards
uBuild database according to various materials

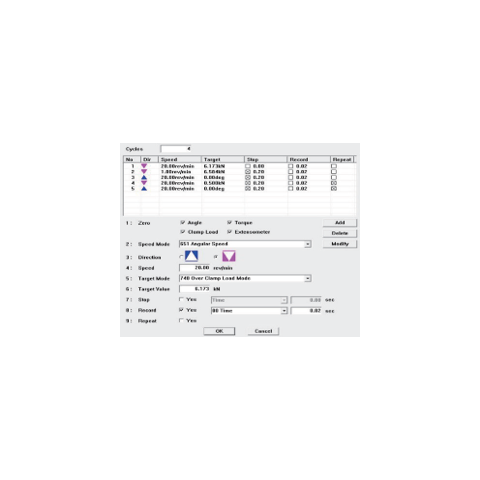

uSetup test sequence by programmable method
uFlexible curve setting, print out various curves
uMetric and British system units optional
uExport data, graphic and table to WORD/EXCEL
Specifications
Specifications
| Model | TTM-T22A2 | TTM-T25A2 | TTM-T31A2 | TTM-T32A2 | TTM-T35A2 | TTM-T41A2 |
| Type | Horizontal | |||||
| Cap (N-m) | 200 | 500 | 1000 | 2000 | 5000 | 10000 |
| Ratio | 10 | 10 | 35 | 38.5 | 66 | 88 |
| Speed (rpm) | 200 | 200 | 50 | 50 | 25 | 20 |
| Resolution of angle | 0.001° | |||||
| Reducer | High torque and low backlash planetary reducer | |||||
| servo motor (kW) | 3 | 7.5 | 4.5 | 7.5 | 11 | 15 |
| DAQ ratio (Hz) | 200 | |||||
| washer base (pcs) | 1 | |||||
| working space (mm) | Ø 200 | Ø 250 | Ø 350 | Ø 350 | Ø 450 | Ø 450 |
| Moving distance (mm) | 250 | 300 | 500 | 500 | 500 | 500 |
| Dimensions (WxDxH) | 1200x550x1080 | 1500x700x1210 | 1800x550x1250 | 1800x700x1250 | 2000x900x1400 | 2500x1000x1500 |
| Weight (kgf) | 180 | 250 | 320 | 360 | 450 | 600 |
| Power | 3phase, 220V 20A | 3phase, 220V 50A | 3phase, 220V 30A | 3phase, 220V 50A | 3phase, 220V 80A | 3phase, 220V 100A |
