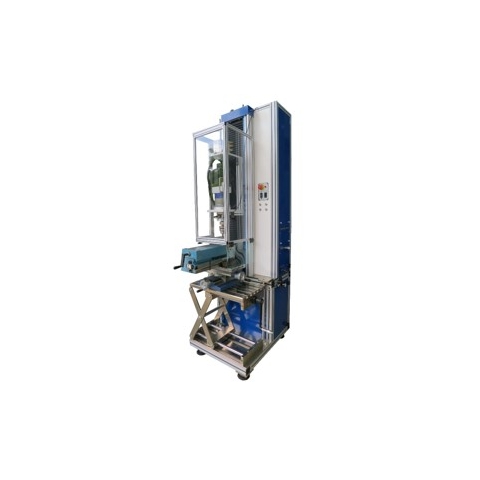

TTM-V Series Vertical Universal Torsion Testing Machine
Features
Features
This series is made for the product torsion analysis. The test is mainly for the screw industry.
Regarding the different test methods, available to connect or switch to different sensors and grips/fixtures to satisfy the standards. Via our exclusive software, it can record the force, angles, and other parameters change at the same time in every test to proceed with the calculation analysis. Available to output excel to provide the complete test data immediately.
The other industry is tool torsional test, fatigue test…etc. Grips including Slot(Flat), Phillips, Pozidriv (ISO 8764, DIN 5260), Hex, and Torx (ISO 10664). Another specified requirement is available for customization to meet the highest satisfaction.
This vertical series is suitable for the capacity under 200N-m. Bigger torsion requirement please refer to the “Horizontal Series Universal Torsion Testing Machine”.
Specifications
Regarding the different test methods, available to connect or switch to different sensors and grips/fixtures to satisfy the standards. Via our exclusive software, it can record the force, angles, and other parameters change at the same time in every test to proceed with the calculation analysis. Available to output excel to provide the complete test data immediately.
The other industry is tool torsional test, fatigue test…etc. Grips including Slot(Flat), Phillips, Pozidriv (ISO 8764, DIN 5260), Hex, and Torx (ISO 10664). Another specified requirement is available for customization to meet the highest satisfaction.
This vertical series is suitable for the capacity under 200N-m. Bigger torsion requirement please refer to the “Horizontal Series Universal Torsion Testing Machine”.
Specifications
u Max. 1m length Timber screws for torsional test
u Capacity up to 200 Nm, satisfy big screw breaking test
u Different gravity to simulate the real situation
u Optional auto Z-axis for auto movement to operate easily
u Torsional resistance test for locking nut (exclude clamp force)
u Work with servo motor and a precision reducer to satisfy demand
u Conforming to the testing standards of EN14592, EN15737, EN10666, and ISO 2702
| Model | TTM-V12A2 | TTM-V15A2 | TTM-V22A2 |
| Capacity | 20 N-m | 50 N-m | 200 N-m |
| Velocity | Max. 1,500 rpm | Max. 200 rpm | Max. 200 rpm |
| Screw length | 300/ 600/ 1,000 mm | ||
| Resolution | 0.001 deg | ||
| Reducer | Low backlash Planetary Reducer with high accuracy motor | ||
| Lift | Manual \ Software or button control | ||
| Load | Extra-add weight | ||
| Dimensions (mm) | 750x750x1,800(H) for max. screw length 300 mm 750x750x2,200(H) for max. screw length 600 mm 1,000x1,000 x3,500(H) for max. screw length 1,000 mm |
||
| Weight | Approx. 180 kg | Approx. 180 kg | Approx. 250 kg |
| Power | 3 phase; 220V; 30A | 3 phase; 220V; 20A | 3 phase; 220V; 30A |
| Warranty | 2 years for the whole series | ||
